Montigo DelRay Linear Series

36–72 in•Direct Vent

Direct VentNatural Gas / PropaneBasic & Full Load

Series Overview

The DelRay Linear is the most accessible way to own a Montigo without compromising on quality. Available in four sizes from 36" to 72", each model features a concealed burner with ice fireglass for a clean, modern flame presentation.

Basic models—essential features at the lowest price point
Full Load models—remote, blower kit, micro mesh screen, reflective glass, halogen downlighting, battery backup
Direct-vent—natural gas or propane configurations
15-year limited warranty—backed by Montigo's manufacturer warranty

Cool Wall Technology

Safe-to-touch exterior surfaces

Linear Design

Clean horizontal proportions

15-Year Warranty

Montigo limited warranty

Authorized Montigo Online Dealer · Listed on www.montigo.com →

Shop the Series

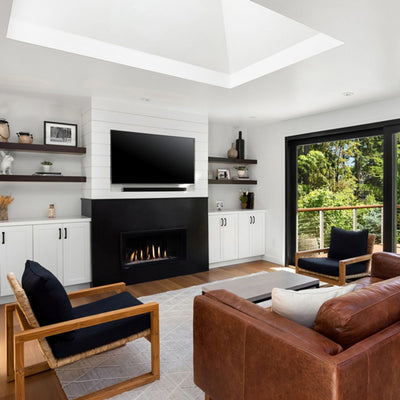

Montigo DelRay Linear 36"

36½" × 14¹¹⁄₁₆"•16,000 BTU

From$2,989.00

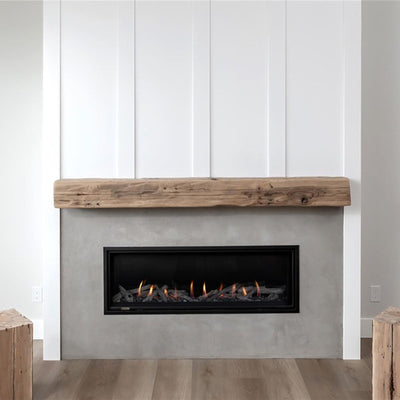

Montigo DelRay Linear 48"

48½" × 14¹¹⁄₁₆"•21,000 BTU

From$3,919.00

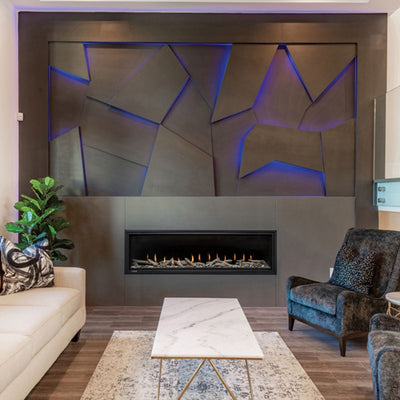

Montigo DelRay Linear 60"

60½" × 14¹¹⁄₁₆"•28,000 BTU

From$4,919.00

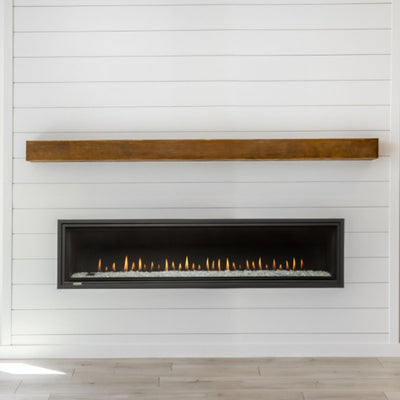

Montigo DelRay Linear 72"

72½" × 14¹¹⁄₁₆"•35,000 BTU

From$5,859.00

What’s Included Standard

Basic Model

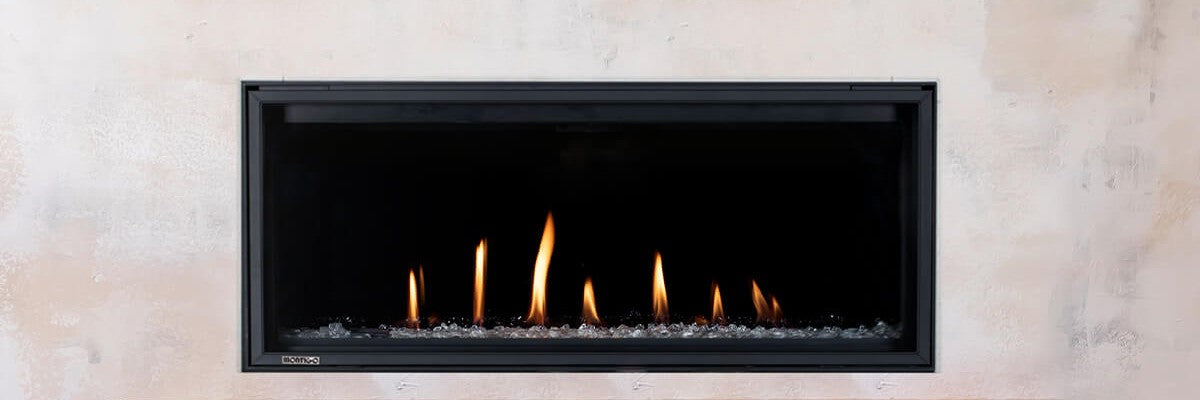

Concealed burner with ice fireglass

Cool Wall Release compatible

Cement board

15-year limited warranty

Full Load Model

Everything in Basic, plus:

Multi-function remote control

Remote-controlled fans

Micro mesh safety screen

Black reflective glass interior panels

Halogen downlighting

Battery backup

Are You a Trade Professional?

Access trade pricing, technical support, and project assistance.

Request Trade Access

Model Specifications

Spec	DelRay Linear 36"	DelRay Linear 48"	DelRay Linear 60"	DelRay Linear 72"
Series	DelRay Linear	DelRay Linear	DelRay Linear	DelRay Linear
Model Tier	Basic	Basic	Basic	Basic
BTU (NG)	16,000	21,000	28,000	35,000
BTU (LP)	16,000	19,000	25,000	32,000
Efficiency (NG)	71%	63%	67%	66%
Viewing Area	36½" × 14¹¹⁄₁₆"	48½" × 14¹¹⁄₁₆"	60½" × 14¹¹⁄₁₆"	72½" × 14¹¹⁄₁₆"
Framing Dimensions	43⅜" × 33¹¹⁄₁₆" × 14¼"	55⅜" × 33¹¹⁄₁₆" × 14¼"	68¹⁵⁄₁₆" × 33¹¹⁄₁₆" × 14¼"	81" × 33¹¹⁄₁₆" × 16"
Venting Type	Direct Vent	Direct Vent	Direct Vent	Direct Vent
Clearances	Top: 21", Sides: 1", Back: 2", Floor: 0"	Top: 21", Sides: 1", Back: 2", Floor: 0"	Top: 36", Sides: 1¾", Back: 2", Floor: 0"	Top: 38½", Sides: 1¾", Back: 2", Floor: 0"
Warranty	15 years	15 years	15 years	15 years

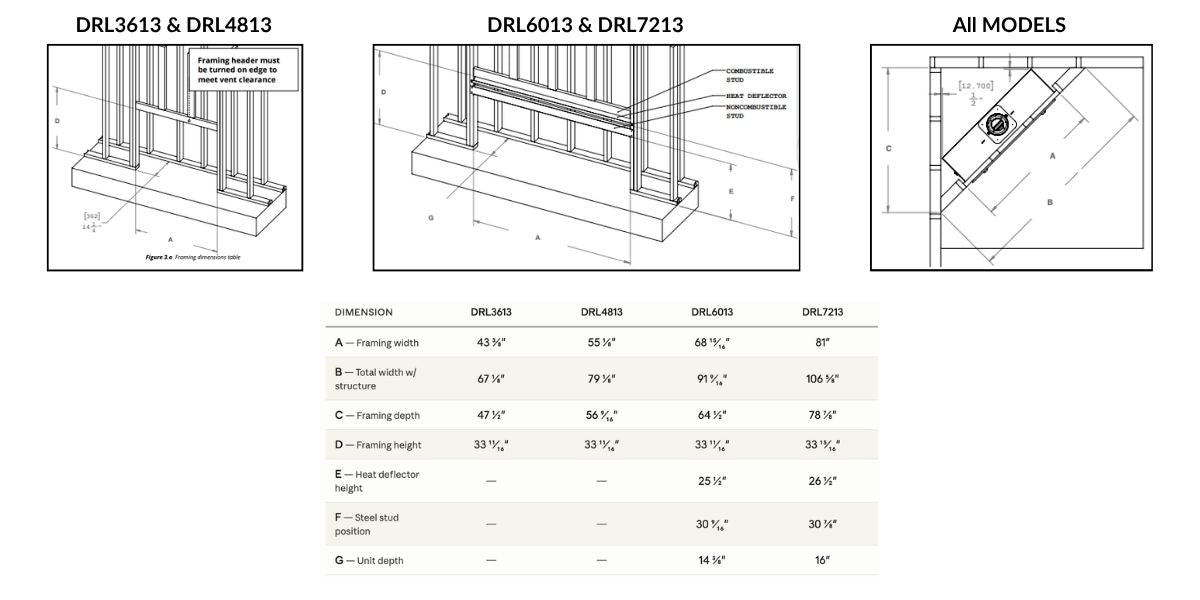

Framing Diagram

Refer to the installation manual for exact clearance-to-combustibles dimensions for each model.

Downloads & Resources
Manuals, spec sheets, brochures, CAD & BIM files

Venting Configurations

All DelRay Linear models use a direct-vent sealed combustion system. Venting can be routed vertically through the roof or horizontally through an exterior wall.

Spec	DRL36	DRL48	DRL60	DRL72
Pipe Size	4″ / 7″	4″ / 7″	4″ / 7″	5″ / 8″
Max Total Length	34 ft	34 ft	34 ft	34 ft
Max Horizontal	20 ft	20 ft	26 ft	26 ft
Termination	Roof or wall mount

5″/8″ to 4″/7″ adapter (PVA5487) available. Refer to installation manual for complete vent run calculations.

Options & Accessories

Option	Availability
Decorative media (speckled stones, driftwood logs, glass)	All models
Cool Wall Advantage kit	All models
Adjustable trim kits	All models
Black reflective glass interior panels	Basic only
Micro mesh safety screen	Basic only
Fan kit (DRFK)	Basic only
Remote control (ProFlame 2)	Basic only
Battery backup	Basic only

Frequently Asked Questions

What's the difference between Basic and Full Load models?

The Basic model includes the bare essentials for the lowest price and you can add options a la carte. The Full Load model comes standard with everything that makes the DelRay Linear truly stand out including: micro mesh screen, black reflective glass interior panels, halogen downlighting (not available as upgrade with Basic model), blower kit, and full function remote control.

Can I convert from natural gas to propane?

Yes, with a propane conversion kit. Every DelRay model is made for natural gas. Just select propane as your fuel type on our website and the propane conversion kit is automatically added to your order.

What venting do I need?

DRL36, DRL48, and DRL60 use 4″/7″ direct-vent pipe. DRL72 uses 5″/8″ pipe. Both vertical (roof) and horizontal (wall) terminations are supported. Refer to the installation manual for vent run calculations.
