Montigo DelRay Square Series

34–46 in•Direct Vent

Direct VentNatural Gas / PropaneBasic & Full Load

Series Overview

The DelRay Square brings Montigo's build quality to a traditional square format. Available in four sizes from 34" to 46", each model features a universal burner system that supports both traditional logsets and contemporary scenes without changing the burner.

Basic models—essential features at the lowest price point
Full Load models—remote, blower kit, micro mesh screen, reflective glass, halogen downlighting, battery backup
Direct-vent—natural gas or propane configurations
15-year limited warranty—backed by Montigo's manufacturer warranty

Cool Wall Technology

Safe-to-touch exterior surfaces

Traditional Proportions

Classic square viewing area

15-Year Warranty

Montigo limited warranty

Authorized Montigo Online Dealer · Listed on www.montigo.com →

Shop the Series

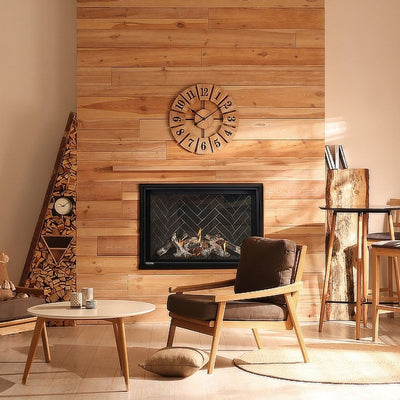

Montigo DelRay Square 34"

29¹¹⁄₁₆" × 18⅞"•15,500 BTU

From$3,069.00

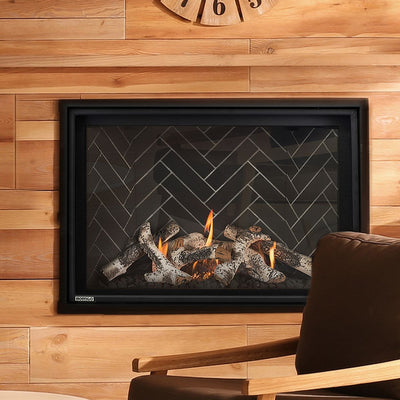

Montigo DelRay Square 38"

33¹¹⁄₁₆" × 22⅞"•20,500 BTU

From$3,399.00

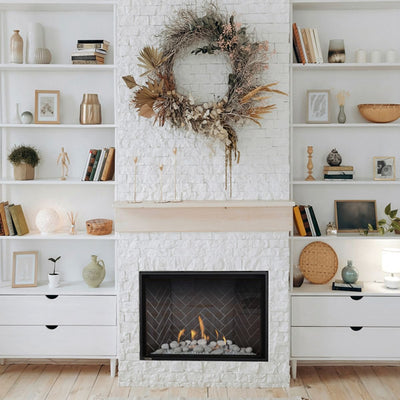

Montigo DelRay Square 42"

37¹¹⁄₁₆" × 26⅞"•32,500 BTU

From$5,609.00

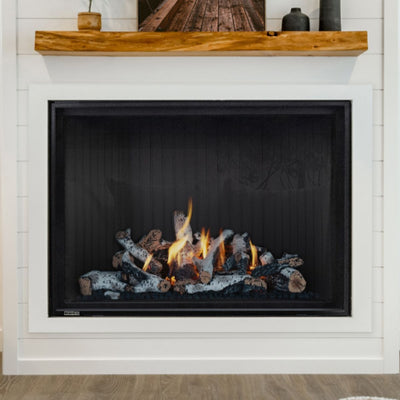

Montigo DelRay Square 46"

41¹¹⁄₁₆" × 30⅞"•40,000 BTU

From$6,149.00

What’s Included Standard

Basic Model

ProFlame 2 Basic IPI ignition

Universal burner (swap log/contemporary media without changing burner)

Satin black painted interior

15-year limited warranty

Full Load Model

Everything in Basic, plus:

ProFlame 2 IPI ignition (upgraded)

Multi-function remote control

Remote Hi-Lo flame control

Remote-controlled fans

Micro mesh screen

Battery backup

Halogen downlighting

Are You a Trade Professional?

Access trade pricing, technical support, and project assistance.

Request Trade Access

Model Specifications

Spec	DelRay Square 34"	DelRay Square 38"	DelRay Square 42"	DelRay Square 46"
Series	DelRay Square	DelRay Square	DelRay Square	DelRay Square
Model Tier	Basic	Basic	Basic	Basic
BTU (NG)	15,500	20,500	32,500	40,000
BTU (LP)	14,000	16,500	27,000	34,000
Efficiency (NG)	67.1%	63.4%	63.1%	64.1%
Viewing Area	29¹¹⁄₁₆" × 18⅞"	33¹¹⁄₁₆" × 22⅞"	37¹¹⁄₁₆" × 26⅞"	41¹¹⁄₁₆" × 30⅞"
Framing Dimensions	36" × 40½" × 18"	40³⁄₁₆" × 44⁷⁄₁₆" × 18"	45" × 51" × 21"	49" × 55" × 22"
Venting Type	Direct Vent	Direct Vent	Direct Vent	Direct Vent
Clearances	Sides: 0", Back: 1½", Floor: 0", Mantel: 9"	Sides: 0", Back: 1½", Floor: 0", Mantel: 6"	Sides: ½", Back: 1½", Floor: 0", Mantel: 10"	Sides: ½", Back: 1", Floor: 0", Mantel: 10"
Warranty	15 years	15 years	15 years	15 years

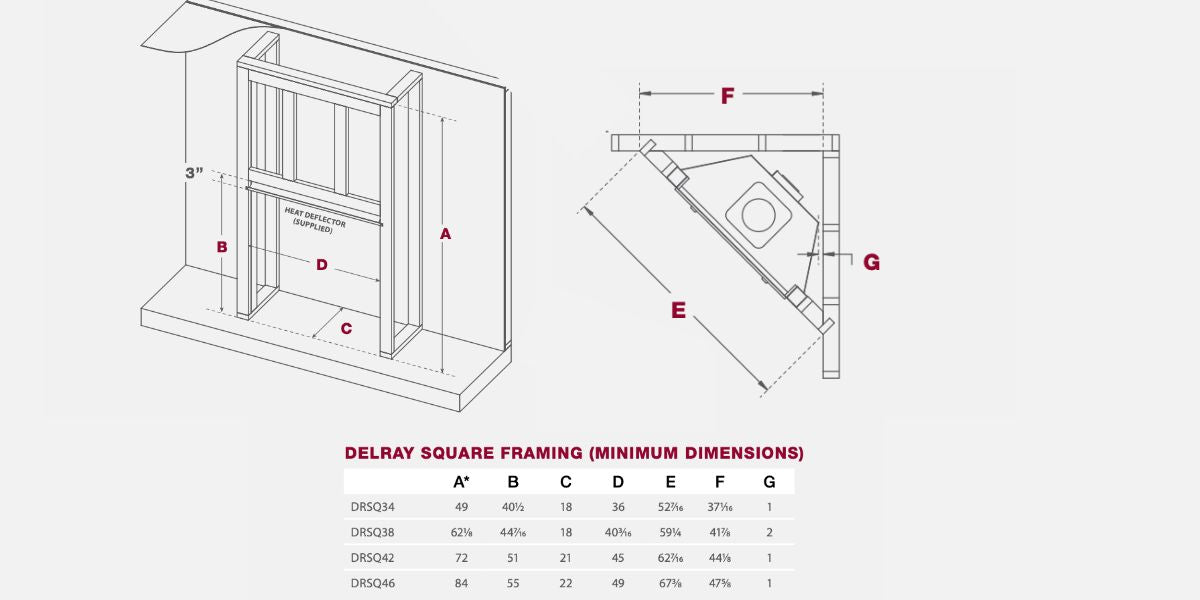

Framing Diagram

Refer to the installation manual for exact clearance-to-combustibles dimensions for each model.

Downloads & Resources
Manuals, spec sheets, brochures, CAD & BIM files

Venting Configurations

All DelRay Square models use a direct-vent sealed combustion system. Venting can be routed vertically through the roof or horizontally through an exterior wall.

Spec	DRSQ34	DRSQ38	DRSQ42	DRSQ46
Pipe Size	4″ / 7″	5″ / 8″	5″ / 8″	5″ / 8″
Max Total Length	34 ft	34 ft	34 ft	34 ft
Max Horizontal	25 ft	25 ft	25 ft	25 ft
Termination	Roof or wall mount

DRSQ38 can be converted to 4″/7″ pipe. DRSQ42 and DRSQ46 cannot be converted to 4″/7″ except with a power vent. Refer to installation manual for complete vent run calculations.

Options & Accessories

Option	Availability
Decorative liners (7 brick/stone options + reflective glass)	All models
Traditional logsets (split oak, birch, driftwood)	All models
Contemporary scenes (winter, beach, twilight)	All models
Cool Wall Advantage kit	All models
Adjustable trim kits	All models
Propane conversion kit	All models
Black reflective glass interior panels	Basic only
Micro mesh safety screen	Basic only
Fan kit (DRFK2)	Basic only
Remote control (ProFlame 2)	Basic only
Battery backup	Basic only

Frequently Asked Questions

What's the difference between Basic and Full Load models?

The Basic model includes the bare essentials for the lowest price and you can add options a la carte. The Full Load model comes standard with everything that makes the DelRay Square truly stand out including: micro mesh screen, black reflective glass interior panels, halogen downlighting (not available as upgrade with Basic model), blower kit, and full function remote control.

Can I convert from natural gas to propane?

Yes, with a propane conversion kit. Every DelRay model is made for natural gas. Just select propane as your fuel type on our website and the propane conversion kit is automatically added to your order.

What venting do I need?

DRSQ34 uses 4″/7″ direct-vent pipe. DRSQ38, DRSQ42, and DRSQ46 use 5″/8″ pipe. DRSQ38 can be converted to 4″/7″, but DRSQ42 and DRSQ46 cannot (power vent required for 4″/7″ on those sizes). Both vertical (roof) and horizontal (wall) terminations are supported. Refer to the installation manual for vent run calculations.

Can I use traditional logs and contemporary scenes?

Yes. The DelRay Square uses a universal burner system that supports both traditional logsets (split oak, birch, driftwood) and contemporary scenes (winter, beach, twilight) without changing the burner. Media kits must be ordered with the unit.
