Series Overview

The Exemplar is Montigo's architect-grade luxury platform — frameless glass, zero-clearance installation, and home automation compatibility, available in linear and multi-sided configurations from 36" to 96".

12 configurations—36–96 in viewing area, Direct Vent
Single-sided + see-through—Pick the configuration that fits your floor plan
Direct-vent or fuel-flexible—Natural gas standard; propane conversion kit available
15-year limited warranty—Backed by Montigo's manufacturer warranty

Architect-Grade Design

Frameless glass, zero clearance, linear-to-96"

Home Automation Ready

24VAC compatibility for smart home integration

15-Year Warranty

Montigo limited warranty

Shop the Series

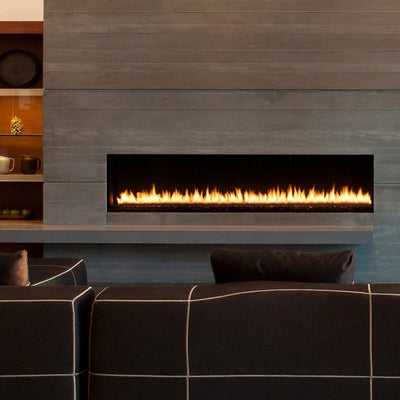

Single Sided

From$11,769.00

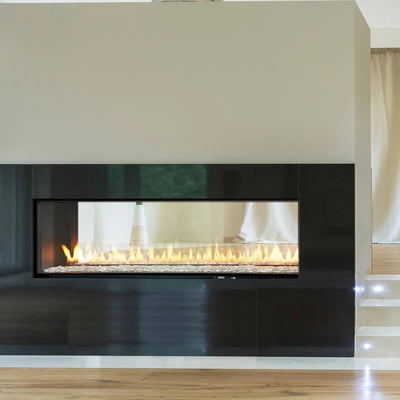

See Through

From$12,759.00

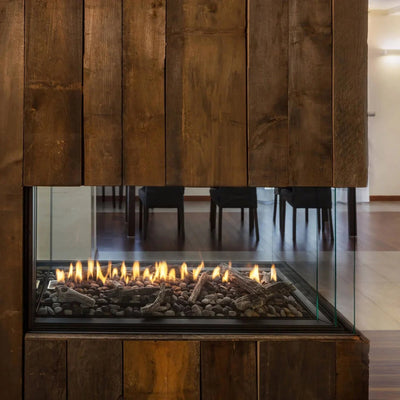

Pier

From$20,668.00

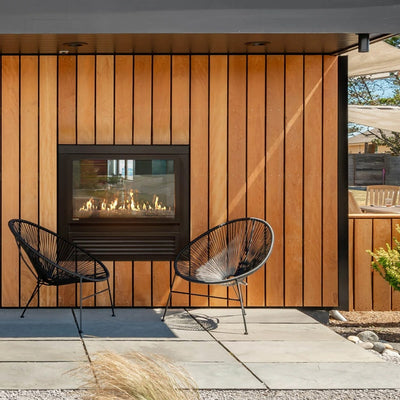

Indoor/Outdoor

From$10,909.00

What’s Included Standard

Included Standard

Honeywell HSI Ignition

24VAC Home Automation Compatible

Zero Clearance Installation

15-Year Limited Warranty

Ice Fireglass

Frameless Window Glass Design

Frameless Dual-Sided Window Glass Design

See-Through Dual Room Viewing

Available as Options

A la carte upgrades and accessories:

Speckled Stones

Driftwood Logset

Wall Mounted Remote

WiFi Phone App Control

Propane Conversion Kit

Reflective Firebox Interior Panel

Model Specifications

Spec	Exemplar R320 36"	Exemplar R320ST 36"	Exemplar R420 48"	Exemplar R420ST 48"	Exemplar R520 60"	Exemplar R520ST 60"	Exemplar R620ST 72"	Exemplar R720 84"	Exemplar R820 96"	Exemplar RP424 48"	Exemplar RP620 72"	Exemplar R324 STIO
Model	R320N (natural gas) / R320L (propane)	R320STN (natural gas) / R320STL (propane)	R420N (natural gas) / R420L (propane)	R420STN (natural gas) / R420STL (propane)	R520N (natural gas) / R520L (propane)	R520STN (natural gas) / R520STL (propane)	R620STN (natural gas) / R620STL (propane)	R720N (natural gas) / R720L (propane)	R820N (natural gas) / R820L (propane)	RP424PFC (part RP424PFN, natural gas)	RP620N (natural gas) / RP620L (propane)	R324STION (natural gas) / R324STIOL (propane)
Series	Montigo Exemplar (R-Series)	Montigo Exemplar (R-Series, see-through)	Montigo Exemplar (R-Series)	Montigo Exemplar (R-Series, see-through)	Montigo Exemplar (R-Series)	Montigo Exemplar (R-Series, see-through)	Montigo Exemplar (R-Series, see-through)	Montigo Exemplar (R-Series)	Montigo Exemplar (R-Series)	Montigo Exemplar (RP-Series)	Montigo Exemplar (RP-Series)	Montigo Exemplar (R-Series, indoor/outdoor see-through)
Fuel Type	Natural Gas or Propane	Natural Gas or Propane	Natural Gas or Propane	Natural Gas or Propane	Natural Gas or Propane	Natural Gas or Propane	Natural Gas or Propane	Natural Gas or Propane	Natural Gas or Propane	Natural Gas (7" WC supply)	Natural Gas or Propane	Natural Gas or Propane
Venting Type	Direct vent — Montigo power vent required (5" inner / 8" outer pipe)	Direct vent — Montigo power vent required (5" inner / 8" outer pipe)	Direct vent — Montigo power vent required (5" inner / 8" outer pipe)	Direct vent — Montigo power vent required (5" inner / 8" outer pipe)	Direct vent — Montigo power vent required (5" inner / 10" outer pipe)	Direct vent — Montigo power vent required (5" inner / 10" outer pipe)	Direct vent — Montigo power vent required (5" inner / 10" outer pipe)	Direct vent — Montigo power vent required (5" inner / 10" outer pipe)	Direct vent — Montigo power vent required (5" inner / 10" outer pipe)	Direct vent — Montigo power vent required (5" / 8" pipe, 25-ft max run incl. one elbow)	Direct vent — Montigo power vent required (5" / 8" pipe)	Self-venting (no vent pipe) — vented decorative appliance
Ignition Type	Honeywell smart valve with hot-surface electronic ignition	Hot-surface electronic ignition (HSI/SIT, IPI) on a Honeywell smart valve	Honeywell smart valve with hot-surface electronic ignition	Hot-surface electronic ignition (HSI/SIT, IPI) on a Honeywell smart valve	Honeywell smart valve with hot-surface electronic ignition	Hot-surface electronic ignition (HSI/SIT, IPI) on a Honeywell smart valve	Hot-surface electronic ignition (HSI/SIT, IPI) on a Honeywell smart valve	Honeywell smart valve with hot-surface electronic ignition	Honeywell smart valve with hot-surface electronic ignition	Honeywell Hot Surface Ignition	Honeywell smart valve with hot-surface electronic ignition (SIT electronic per model table)	Honeywell smart valve with hot-surface electronic ignition
BTU (Natural Gas)	50,000 BTU/h input	45,000 BTU/h input	65,000 BTU/h input	55,000 BTU/h input	80,000 BTU/h input	80,000 BTU/h input	100,000 BTU/h input	100,000 BTU/h input	100,000 BTU/h input	45,000 BTU/h input	75,000 BTU/h input	50,000 BTU/h input
BTU (Propane)	40,000 BTU/h input	42,000 BTU/h input	55,000 BTU/h input	55,000 BTU/h input	65,000 BTU/h input	80,000 BTU/h input	100,000 BTU/h input	80,000 BTU/h input	80,000 BTU/h input	68-1/2"	70,000 BTU/h max input (rating plate)	50,000 BTU/h input
Framing Width	55"	56-13/16"	67"	68-13/16"	77"	80-13/16"	92-13/16"	101"	113"	53"	96"	49"
Framing Height	47"	47"	47"	47"	45"	47"	47"	46"	46"	24" (top vent)	55-1/2" (rear vent) / 52-1/2" (top vent)	48"
Framing Depth	23-3/4"	23-3/4"	23-3/4"	23-3/4"	23-3/4"	23-3/4"	23-3/4"	23-3/4"	23-3/4"	24" W x 48" H glass on each of three sides	26"	35-1/4" W x 26-3/8" H (each side, per spec sheet)
Viewing Area	37-1/4" W x 16-1/8" H	37-1/4" W x 16-1/8" H (both sides)	49-1/4" W x 16-1/8" H	49-1/4" W x 16-1/8" H (both sides)	61-1/4" W x 18-1/8" H	61-1/4" W x 18-1/8" H (both sides)	73-1/4" W x 18-1/8" H (both sides)	85-1/4" W x 18-1/8" H	97-1/4" W x 18-1/8" H	0" — zero clearance to combustibles	73-1/4" W x 18-1/8" H	3" to combustibles; combustible mantle 6" from top of opening
Clearance (Top)	24" to combustible framing (top or rear vent)	26" to combustible framing	24" to combustible framing (top or rear vent)	26" to combustible framing	24" to combustible framing (top or rear vent)	26" to combustible framing	26" to combustible framing	24" to combustible framing (top or rear vent)	24" to combustible framing (top or rear vent)	0" — zero clearance to combustibles	15-1/4" (rear vent) / 25-3/4" (top vent)	1/2" to combustibles
Clearance (Sides)	6" to combustible framing	3" to combustible framing	6" to combustible framing	3" to combustible framing	6" to combustible framing	3" to combustible framing	3" to combustible framing	6" to combustible framing	6" to combustible framing	0" — zero clearance to combustibles	5-5/8"	120V/60Hz for the integral power vent
Clearance (Back)	2" to combustible framing	120V/60Hz; power vent draws under 12 A; 20-ft low-voltage wall-switch wire supplied	2" to combustible framing	120V/60Hz; power vent draws under 12 A; 20-ft low-voltage wall-switch wire supplied	2" to combustible framing	120V/60Hz; power vent draws under 12 A; 20-ft low-voltage wall-switch wire supplied	120V/60Hz; power vent draws under 12 A; 15 A dedicated circuit per rating plate; 20-ft low-voltage wall-switch wire supplied	2" to combustible framing	2" to combustible framing	115VAC 5 A fireplace circuit + 115VAC 3 A lighting circuit; 12x 20W G6.35 halogen bulbs	4-3/8"	15 yr firebox & burner / 15 yr venting / 10 yr terminations / 1 yr controls, electrical, media, glass & labor (residential)
Electrical	120V/60Hz; power vent draws under 12 A; 20-ft low-voltage wall-switch wire supplied	15 yr firebox & burner / 15 yr venting / 10 yr terminations / 1 yr controls, electrical, media, glass & labor (residential)	120V/60Hz; power vent draws under 12 A; 20-ft low-voltage wall-switch wire supplied	15 yr firebox & burner / 15 yr venting / 10 yr terminations / 1 yr controls, electrical, media, glass & labor (residential)	120V/60Hz; power vent draws under 12 A; 20-ft low-voltage wall-switch wire supplied	15 yr firebox & burner / 15 yr venting / 10 yr terminations / 1 yr controls, electrical, media, glass & labor (residential)	15 yr firebox & burner / 15 yr venting / 10 yr terminations / 1 yr controls, electrical, media, glass & labor (residential)	120V/60Hz; power vent draws under 12 A; 20-ft low-voltage wall-switch wire supplied	120V/60Hz; power vent draws under 12 A; 20-ft low-voltage wall-switch wire supplied	15 yr firebox & burner / 15 yr venting / 10 yr terminations / 1 yr controls, electrical, media, glass & labor (residential)	120V/60Hz; power vent draws under 12 A; integral lights wired to wall switch/dimmer	—

Downloads & Resources
Manuals, spec sheets, brochures, CAD & BIM files

Venting Configurations

Exemplar (R/RP-Series) is a power-vented fireplace, with one exception: R324 STIO is ventless (indoor/outdoor pass-through). Power vent terminations may be vertical (roof), horizontal (wall), or inline. Vent pipe is 5″/8″ standard; 5″/10″ also approved. Power vent control cable required between termination and electrical control panel.

Spec	All Power-Vent Models
Pipe Size	5″ / 8″ (5″/10″ also approved)
Vent Type	Power vent (PVVEX/PVHEX/PVHFL/PVHIN series)
Max Vent Run (Horizontal + Vertical)	100 ft (straight or multi-elbow)
Max Vent Run with 6 ft Downward	70 ft (subtract 10 ft per additional 1 ft downward)
Max Elbows	Six 90° or equivalent (one 90° = two 45°)
Termination	Roof or wall mount (vertical, horizontal, or flush/louvered)

RP424 (pier) follows the same 5″/8″ power-vent system. R324 STIO is the ventless indoor/outdoor exception in this series — see the Outdoor series page for its venting details. Minimum 7 ft of pipe between fireplace and inline power vent (PVHIN58-300). Refer to installation manual venting tables for vent configuration details.

Options & Accessories

Option	Availability
Speckled Stones	All models
Driftwood Logset	All models
Wall Mounted Remote	All models
WiFi Phone App Control	All models
Propane Conversion Kit	All models
Reflective Firebox Interior Panel	All models
Inline Power Vent Option	All models
IO Seal Kit (for outdoor installation)	All models

Frequently Asked Questions

Can I convert from natural gas to propane?

Yes, with a propane conversion kit. Every Montigo gas model is made for natural gas; select propane as your fuel type on our website and the conversion kit is automatically added to your order.

What venting do I need?

These models use direct-vent sealed combustion piping. Both vertical (through-roof) and horizontal (through-wall) terminations are supported. Refer to the installation manual for exact pipe size, max run length, and clearance requirements per model.

What does "zero-clearance installation" mean?

Zero-clearance means the firebox can be installed directly against combustible framing materials (wood studs, drywall) without additional clearance requirements. This significantly simplifies framing and lets you flush-mount the fireplace to surrounding finishes.

How does Exemplar differ from Distinction?

Exemplar is the architect/spec-builder tier — Honeywell HSI ignition, frameless glass design, home automation compatibility, and sizes up to 96". Distinction is the modern luxury tier with Proflame 2 IPI ignition, LED uplighting standard, and sizes up to 72". If you need 84" or 96" widths, multi-sided STIO units, or 24VAC integration, Exemplar is the platform.
