Montigo Illume Series

30–34 in•Insert

Direct Vent InsertExisting Masonry Retrofit30" or 34" Widths

Series Overview

The Illume is Montigo's direct-vent gas insert platform — designed to retrofit existing masonry fireplace openings without rebuilding the surround. Available in 30" and 34" widths in traditional or contemporary styling.

5 configurations—30–34 in viewing area, Insert
Direct-vent or fuel-flexible—Natural gas standard; propane conversion kit available
15-year limited warranty—Backed by Montigo's manufacturer warranty

Retrofit Without Rebuild

Designed for existing masonry openings

Traditional or Contemporary

Same firebox, swap logsets and panels for either look

15-Year Warranty

Montigo limited warranty

Authorized Montigo Online Dealer · Listed on www.montigo.com →

Shop the Series

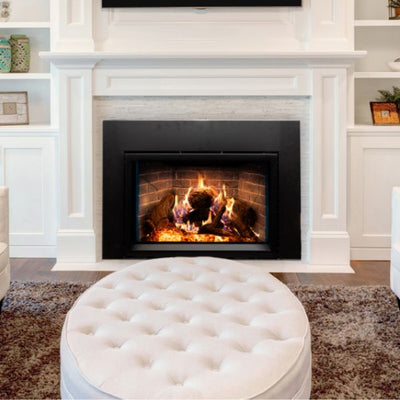

Direct Vent Insert

From$4,099.00

What’s Included Standard

Included Standard

Proflame 2 IPI Ignition

Ceramic Glass

Blower

Accent Light

Rear Burner Shut-Off

Designed for Existing Masonry Openings

15-Year Limited Warranty

Available as Options

A la carte upgrades and accessories:

Propane Conversion Kit

Are You a Trade Professional?

Access trade pricing, technical support, and project assistance.

Request Trade Access

Model Specifications

Spec	Illume DVCP Large
Type:	Direct Vent Gas Fireplace Insert
Fuel Type:	Natural Gas \| Propane
Max BTUs:	(NG) 21,000–32,000 BTUs \| (LP) 24,500–31,000 BTUs
Glass Opening Width:	28 1/4"
Glass Opening Height:	18 15/16"
Commercial:	No
Customizable:	No
Min. Masonry Cavity Width:	39 1/2"
Min. Masonry Cavity Height:	24 1/2"
Min. Masonry Cavity Depth:	18 1/2"
P.4. 1-15 Efficiency:	62.5%

Downloads & Resources
Manuals, spec sheets, brochures, CAD & BIM files

Venting Configurations

Illume Inserts (FID-Series) use Co-Linear direct venting routed up through an existing masonry or factory-built chimney. Both intake and exhaust vents must be connected and operational. Vertical termination only — horizontal/wall termination is not supported on inserts.

Spec	30FID	34FID
Pipe Size	3″ x 3″ Co-Linear	3″ x 4″ Co-Linear
Min Vent Height (floor to termination)	10 ft	10 ft
Max Vent Height	36 ft	36 ft
Vent Direction	Vertical only	Vertical only
Termination	Roof (existing chimney)	Roof (existing chimney)

Co-Linear venting uses two separate aluminum flex liners (intake + exhaust) routed down the existing chimney. Co-Linear-to-Co-Axial adaptor at the termination converts to standard direct-vent termination cap. Using existing flues as a partial vent mechanism is not allowed — both liners must run the full chimney length.

Options & Accessories

Option	Availability
Propane Conversion Kit	All models
Speckled Stones	All models
Decorative Interior Panels	All models

Frequently Asked Questions

Can I convert from natural gas to propane?

Yes, with a propane conversion kit. Every Montigo gas model is made for natural gas; select propane as your fuel type on our website and the conversion kit is automatically added to your order.

Can Illume retrofit any existing fireplace?

Illume is designed for existing masonry-construction fireplace openings (typical brick or stone fireplaces). Minimum opening dimensions are required — refer to the installation manual for exact framing/clearance specs. Illume cannot retrofit zero-clearance prefab fireplaces; for those, a full firebox replacement is needed.

What's the DVCP variant?

The DVCP is the larger Illume insert designed for bigger masonry openings. Use the standard 30FID or 34FID for typical residential openings; DVCP for oversized fireplaces.
