Montigo Paragon Resources — Specs, Manuals, CAD/BIM

Series Overview

The Paragon is Montigo's realistic-flame traditional platform — TruFlame technology with 6-step variable flame height, independent rear burner control, and forged-iron decorative front options for a true masonry-fireplace look.

4 configurations—36–50 in viewing area, Direct Vent
Single-sided + see-through—Pick the configuration that fits your floor plan
Direct-vent or fuel-flexible—Natural gas standard; propane conversion kit available
15-year limited warranty—Backed by Montigo's manufacturer warranty

TruFlame Technology

Most realistic traditional flame Montigo offers

6-Step Variable Flame

Independent rear burner with 70% turn-down

15-Year Warranty

Montigo limited warranty

Shop the Series

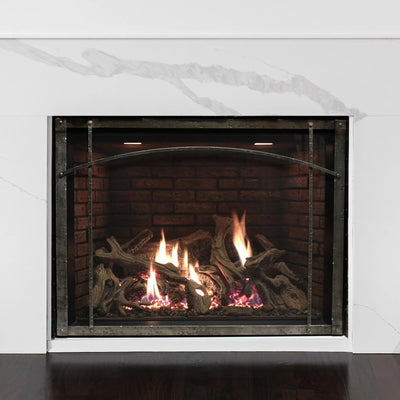

Single Sided

From$6,555.00

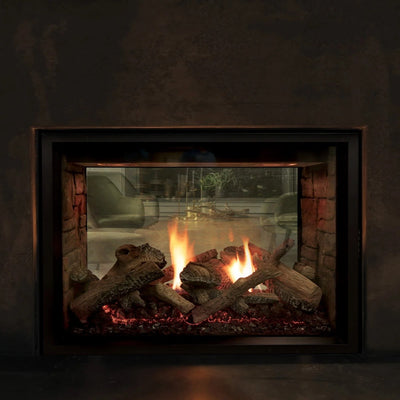

See Through

From$9,525.00

What’s Included Standard

Included Standard

TruFlame Technology (most realistic traditional flame)

Proflame 2 IPI Ignition

Micro Mesh Screen

Multi-Function Remote Control

Remote Hi-Lo Flame Control

6-Step Variable Flame Height

Independent Rear Burner On/Off (70% Turn Down)

Accent Lighting On/Off with 6-Step Dimming

Halogen Downlighting

Rear Burner Shut Down

Available as Options

A la carte upgrades and accessories:

Heat Management

Decorative Fronts (Forged Iron Insets — Arch or Rectangle in Black, Distressed Pewter, or Oil-Rubbed Bronze)

Traditional Logsets

Traditional and Contemporary Interior Panels (Grey Herringbone, Black Porcelain, Tan Brick, Vintage Brown Brick)

Remote-Controlled Fans

Propane Conversion Kit

WiFi Phone App Control

Model Specifications

Spec	Paragon 36" TruFlame	Paragon 40" TruFlame	Paragon 40" TruFlame	Paragon 50" TruFlame
Model	DVCT36CBP95N	DVCT40CBP95N	DVCT40CSP95N	DVCT50CBP95N
Series	Paragon	Paragon	Paragon	Paragon
Fuel Type	Natural Gas \| Propane (certified conversion kit 37506)	Natural Gas \| Propane (certified conversion kit 36884)	Natural Gas \| Propane (certified conversion kit 40636)	Natural Gas \| Propane (certified conversion kit 38226)
Venting Type	Direct Vent (5" x 8", top vent only)	Direct Vent (5" x 8", top vent only)	Direct Vent (5" x 8", top vent only)	Direct Vent (5" x 8", top vent only)
Ignition Type	IPI - Intermittent Pilot Ignition (battery backup)	IPI - Intermittent Pilot Ignition (battery backup)	IPI - Intermittent Pilot Ignition (battery backup)	IPI - Intermittent Pilot Ignition (battery backup)
BTU (Natural Gas)	40,000 max / 26,000 min (11,000 front burner only)	47,500 max / 30,000 min (15,000 front burner only)	60,500 max / 40,000 min (16,500 front burner only)	56,500 max / 38,000 min (16,500 front burner only)
BTU (Propane)	40,000 max / 33,000 min (13,000 front burner only)	45,000 max / 35,000 min (16,500 front burner only)	55,000 max / 43,000 min (26,000 front burner only)	55,000 max / 44,000 min (26,000 front burner only)
Framing Width	45-1/2"	49-1/2"	57-3/4" (58" with outdoor kit)	58-1/2"
Framing Height	53-1/2"	55-1/2"	59" (62" with outdoor kit)	58-1/2"
Framing Depth	22-1/8"	24"	23-1/2" (25-1/2" with outdoor kit)	24"
Viewing Area	31-3/4" W x 28-3/8" H (glass)	36" W x 30-3/8" H (glass)	37-3/8" W x 31-1/2" H glass, each side	47-3/8" W x 36-9/16" H (glass)
Clearance (Top)	36" above top of unit; opening min 35" below ceiling	36" above top of unit; opening min 35" below ceiling	24" above top of unit; opening min 35" below ceiling	36" above top of unit; opening min 35" below ceiling
Clearance (Sides)	2" to combustibles; opening min 6" from sidewall	2" to combustibles; opening min 6" from sidewall	3" to combustibles; opening min 9" from sidewall	2" to combustibles; opening min 6" from sidewall
Clearance (Back)	0"	0"	120V, 60Hz, 1 Amp	0"
Electrical	120V, 60Hz, 1 Amp (right-side entrance)	120V, 60Hz, 1 Amp	—	120V, 60Hz, 1 Amp

Downloads & Resources
Manuals, spec sheets, brochures, CAD & BIM files

Venting Configurations

Paragon (DVCT-Series) uses a direct-vent sealed combustion system with 5″/8″ vent pipe. Venting can terminate through the roof or an exterior wall. Vent configurations must follow the side-wall venting graph relating vertical-to-horizontal run lengths.

Spec	All Models
Pipe Size	5″ / 8″
Vent Type	Direct vent (DVP-series components)
Clearance to Combustibles	3″ top / 1″ bottom and sides of vent pipe
Termination	Roof or wall mount (vertical or horizontal sidewall)
Vent Run Limits	Per side-wall venting graph in installation manual (relationship of vertical run to horizontal run)

Empire/Montigo Paragon uses a Direct Vent System component set (DVP40PS, etc.). A liner kit and log set are required for the TruFlame system. Always reference the venting graph in the installation manual to confirm your planned configuration is within allowed limits.

Options & Accessories

Option	Availability
Heat Management	All models
Decorative Fronts (Forged Iron Insets — Arch or Rectangle in Black, Distressed Pewter, or Oil-Rubbed Bronze)	All models
Traditional Logsets	All models
Traditional and Contemporary Interior Panels (Grey Herringbone, Black Porcelain, Tan Brick, Vintage Brown Brick)	All models
Remote-Controlled Fans	All models
Propane Conversion Kit	All models
WiFi Phone App Control	All models

Frequently Asked Questions

Can I convert from natural gas to propane?

Yes, with a propane conversion kit. Every Montigo gas model is made for natural gas; select propane as your fuel type on our website and the conversion kit is automatically added to your order.

What venting do I need?

These models use direct-vent sealed combustion piping. Both vertical (through-roof) and horizontal (through-wall) terminations are supported. Refer to the installation manual for exact pipe size, max run length, and clearance requirements per model.

What is TruFlame Technology?

TruFlame is Montigo's premium burner system designed to produce the most realistic traditional flame in their lineup — independent rear burner that turns down to 70% for embers-only flame effect, 6-step variable height, and traditional logsets with realistic ember beds. If you want the look of a wood-burning fireplace with the convenience of gas, Paragon is the platform.
