Montigo Phenom Resources — Specs, Manuals, CAD/BIM

Series Overview

The Phenom is Montigo's high-efficiency linear platform — three sizes (38", 42", 52") with single-sided Basic, single-sided Full Load, and see-through configurations to fit different budgets and floor plans.

9 configurations—38–52 in viewing area, Direct Vent
Single-sided + see-through—Pick the configuration that fits your floor plan
Direct-vent or fuel-flexible—Natural gas standard; propane conversion kit available
15-year limited warranty—Backed by Montigo's manufacturer warranty

Linear Design

Clean horizontal proportions, ice fireglass

Three Configurations

Basic, Full Load, and See-Through per size

15-Year Warranty

Montigo limited warranty

Shop the Series

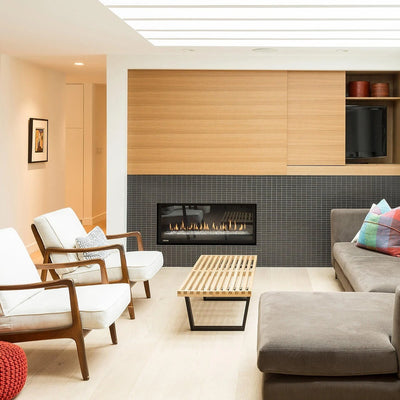

Single Sided

From$5,109.00

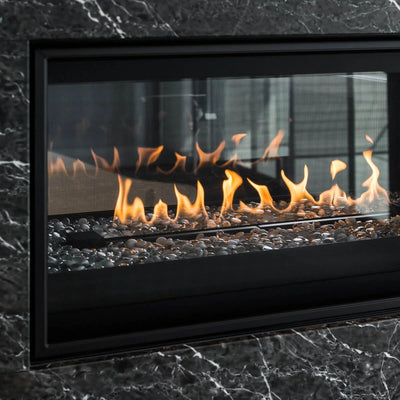

See Through

From$7,059.00

What’s Included Standard

Basic Model

Proflame 2 Basic IPI Ignition

Ice Fireglass

15-Year Limited Warranty

Full Load Model

Everything in Basic, plus:

Proflame 2 IPI Ignition

Multi-Function Remote Control

Remote-Controlled Fans

Black Porcelain Interior Panel

Halogen Uplighting

Remote Hi-Lo Flame Control

Micro Mesh Screen

Battery Backup

Quartz Firestones

Concealed Burner Design

Model Specifications

Spec	Phenom 38"	Phenom 38"	Phenom 38" See	Phenom 42"	Phenom 42"	Phenom 42" See	Phenom 52"	Phenom 52"	Phenom 52" See
Model	PL38DF	P38DF	L38FSD (L38FSDN / L38FSDL / L38FSDNI / L38FSDLI)	PL42DF	P42DF	L42FSD (L42FSDN / L42FSDL / L42FSDNI / L42FSDLI)	PL52DF	P52DF	L52FSD (L52FSDN / L52FSDL / L52FSDNI / L52FSDLI)
Series	Montigo Phenom — Basic	Montigo Phenom — Full Load	Montigo Phenom — See-Through	Montigo Phenom — Basic	Montigo Phenom — Full Load	Montigo Phenom — See-Through	Montigo Phenom — Basic	Montigo Phenom — Full Load	Montigo Phenom — See-Through
Fuel Type	Natural Gas or Propane (by variant)	Natural Gas or Propane (by variant)	Natural Gas or Propane (by variant)	Natural Gas or Propane (by variant)	Natural Gas or Propane (by variant)	Natural Gas or Propane (by variant)	Natural Gas or Propane (by variant)	Natural Gas or Propane (by variant)	Natural Gas or Propane (by variant)
Venting Type	Direct vent, 5 in. / 8 in. coaxial; top or rear vent	Direct vent, 5 in. / 8 in. coaxial; top or rear vent	Direct vent, 5 in. / 8 in. coaxial; top or side vent	Direct vent, 5 in. / 8 in. coaxial; top or rear vent	Direct vent, 5 in. / 8 in. coaxial; top or rear vent	Direct vent, 5 in. / 8 in. coaxial; top vent or multi-elbow side vent (no straight-out side vent)	Direct vent, 5 in. / 10 in. coaxial standard (5/8 convertible w/ RVA108 + 8 ft rise); top vent or multi-elbow rear vent	Direct vent, 5 in. / 10 in. coaxial standard (5/8 convertible w/ RVA108 + 8 ft rise); top vent or multi-elbow rear vent	Direct vent, 5 in. / 8 in. coaxial; top vent only (no side vent)
Ignition Type	SIT Proflame 2 BASIC electronic (IPI with Pilot on Demand)	SIT Proflame 2 electronic (IPI with Pilot on Demand)	Standing pilot (SIT NOVA 820, piezo) or SIT Proflame 2 electronic — by variant	SIT Proflame 2 BASIC electronic (IPI with Pilot on Demand)	SIT Proflame 2 electronic (IPI with Pilot on Demand)	Standing pilot (SIT NOVA 820, piezo) or SIT Proflame 2 electronic — by variant	SIT Proflame 2 BASIC electronic (IPI with Pilot on Demand)	SIT Proflame 2 electronic (IPI with Pilot on Demand)	Standing pilot (SIT NOVA 820, piezo) or SIT Proflame 2 electronic — by variant
BTU (Natural Gas)	25,000 BTU/hr	25,000 BTU/hr	27,000 BTU/hr	32,000 BTU/hr	32,000 BTU/hr	34,000 BTU/hr	40,000 BTU/hr	40,000 BTU/hr	40,000 BTU/hr
Efficiency	58% (P.4.1-15, NG and LP)	25,000 BTU/hr	58–59.6% by variant (58.6 standing pilot; 58 NG electronic; 59.6 LP electronic)	57% NG / 60% LP (P.4.1-15)	32,000 BTU/hr	57–60% by variant (58 standing pilot; 57 NG electronic; 60 LP electronic)	56% NG / 59% LP (P.4.1-15, per manual)	40,000 BTU/hr	56.7–61.2% by variant (56.71 NG pilot; 60 LP pilot; 56.99 NG electronic; 61.2 LP electronic)
Framing Width	37-3/4"	58% (P.4.1-15, NG and LP)	41"	42"	57% NG / 60% LP (P.4.1-15)	45"	52"	56% NG / 59% LP (P.4.1-15, per manual)	59"
Framing Height	41-1/4" (framed rough opening)	37-3/4"	40"	42" (framed rough opening)	42"	40"	43-3/4" (framed rough opening)	52"	39"
Framing Depth	20-1/8"	41-1/4" (framed rough opening)	23-3/4"	21-7/8"	42" (framed rough opening)	23-3/4"	24-1/2"	43-3/4" (framed rough opening)	23-3/4"
Viewing Area	35-3/16" W x 19-1/2" H	20-1/8"	35-1/4" W x 19-3/8" H, each side	39-1/2" W x 20-3/8" H	21-7/8"	39-1/2" W x 20-5/16" H, each side	47" W x 21-7/8" H	24-1/2"	47" W x 21-13/16" H, each side
Clearance (Top)	17-1/2" top vent / 9" rear vent	35-3/16" W x 19-1/2" H	17-1/2" top vent / 10" side vent	17-1/2" top vent / 9" rear vent	39-1/2" W x 20-3/8" H	12" NG / 17" LP top vent; 12" side vent	26" top vent / 12" rear vent	47" W x 21-7/8" H	30"
Clearance (Sides)	0"	17-1/2" top vent / 9" rear vent	1"	0"	17-1/2" top vent / 9" rear vent	2"	2-1/2" from firebox body (1" to insulated flange)	26" top vent / 12" rear vent	1"
Clearance (Back)	0"	0"	120 VAC, 60 Hz, 6 A (electronic-ignition variants); AF40BP battery backup optional	0"	0"	120 VAC, 60 Hz, 6 A (electronic-ignition variants); AF40BP battery backup optional	1"	2-1/2" from firebox body (1" to insulated flange)	120 VAC, 60 Hz, 6 A (electronic-ignition variants); AF40BP battery backup optional
Electrical	120 VAC, 60 Hz, 6 A; AF40BP battery backup optional	0"	15 yr parts firebox, heat exchanger & burner (1 yr labor); 1 yr most other components	120 VAC, 60 Hz, 6 A; AF40BP battery backup optional	0"	15 yr parts firebox, heat exchanger & burner (1 yr labor); 1 yr most other components	120 VAC, 60 Hz, 6 A; AF40BP battery backup optional	1"	15 yr parts firebox, heat exchanger & burner (1 yr labor); 1 yr most other components

Downloads & Resources
Manuals, spec sheets, brochures, CAD & BIM files

Venting Configurations

Phenom (L-Series) uses a direct-vent sealed combustion system with 5″/8″ vent pipe. Venting can originate top or side and terminate through the roof or an exterior wall. Wall-mount layouts must comply with model-specific venting graphs in the installation manual.

Spec	L38DF / L38FSD	L42DF / L42FSD	L52DF / L52DF-ST
Pipe Size	5″ / 8″	5″ / 8″	5″ / 8″
Max Vertical Termination	32 ft	32 ft	32 ft
Max Offsets (Vertical)	2 offsets (4 elbows)	2 offsets (4 elbows)	2 offsets (4 elbows)
Min Vertical Rise (Wall Mount)	42″ (top vent) / 42″ (side vent)	54″ (top vent) / 54″ (side vent)	84″ (top vent)
Termination	Roof or wall mount

Each model has its own venting graph for wall-mounted terminations — the acceptable vertical/horizontal run combinations differ by size and by top-vent vs side-vent. Always plot your proposed run on the appropriate graph before purchasing. Use PVTK1SS termination for 5″/8″ systems.

Options & Accessories

Option	Availability
Speckled Stones	All models
Driftwood Logset	All models
Propane Conversion Kit	All models
Multi-Function Remote Control	Basic only
Fan Kit	Basic only
Micro Mesh Screen	Basic only
Adjustable Trim Kit	All models
Cool Wall Advantage Kit	All models
WiFi Phone App Control	All models
Reflective Glass Interior Panels	Basic only
Battery Backup	Basic only

Frequently Asked Questions

Can I convert from natural gas to propane?

Yes, with a propane conversion kit. Every Montigo gas model is made for natural gas; select propane as your fuel type on our website and the conversion kit is automatically added to your order.

What venting do I need?

These models use direct-vent sealed combustion piping. Both vertical (through-roof) and horizontal (through-wall) terminations are supported. Refer to the installation manual for exact pipe size, max run length, and clearance requirements per model.

What's the difference between Phenom Basic, Full Load, and See-Through?

Basic is the entry-level single-sided model — bare essentials, lowest price, options à la carte. Full Load is the same single-sided footprint but with remote, blower kit, micro mesh screen, halogen uplighting, and battery backup standard. See-Through has glass on both sides for room-divider installations and can't be downgraded to Basic.
