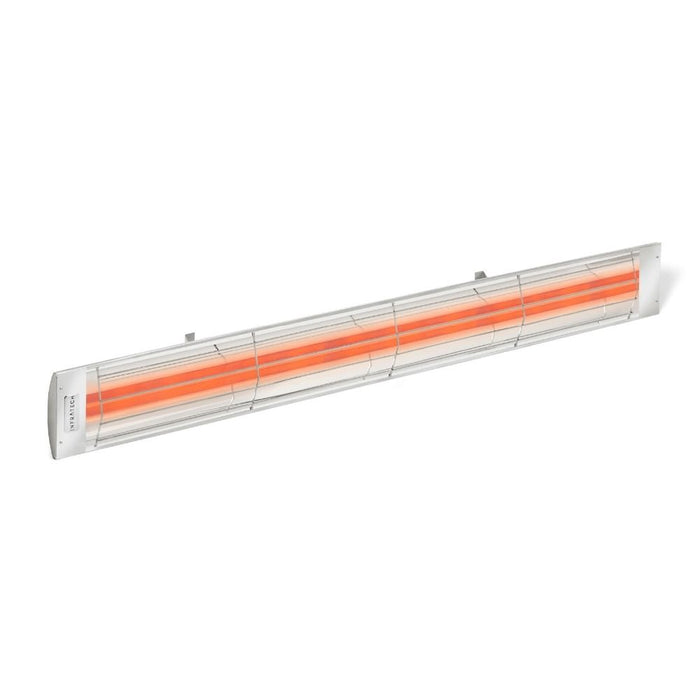

The C Series C-1500 from Infratech
1,500 watts of 93%-efficient infrared heat from a 33" single-element quartz-tube heater in 304 stainless steel: an average 5' x 5' of coverage from a 6' – 7' mounting height, 120V, 240V, 208V variants, from $641, UL & cUL listed, made in Gardena, California, and backed by a 3-year parts warranty.
Choose the C-Series for a visible wall or ceiling mount you actually want to look at — the floating bracket design and optional Motif fascias make it the architectural choice for surface installs.
It is not a furnace substitute — Infratech states these radiant heaters are not a replacement for forced air or ductless heating. It must be hard-wired by a licensed electrician (there is no plug).
Specifications
Keep 18" of clearance at the sides and ends, 36" in front, and 6" behind the heater; wall mounts sit at least 12" below the ceiling angled 30–60° down, and the minimum mounting height is 6' (UL) or 8' (UL/cUL). Power is 120V, 240V, 208V depending on the variant, drawing 12.5 A at 120V / 6.3 A at 240V / 7 A at 208V, on a dedicated hard-wired circuit.
C-1500 vs. its closest Infratech options
A Marine UpGrade version in 316 stainless is from $891 (vs from $641 here), and the next size in the C Series line, 2,000 watts at 39", is from $707.
Features
- All-weather 304 stainless steel C-shaped body, 2.5" deep — with 316 marine grade available as its own listing
- 93% efficient, emission-free infrared heat from a single quartz-tube infrared element with a high output safety grid
- Covers an average 5' x 5' area from a 6' – 7' mounting height — up to 7' x 7' in protected spaces
- Inset mounting brackets give the housing a floating appearance on a wall or ceiling

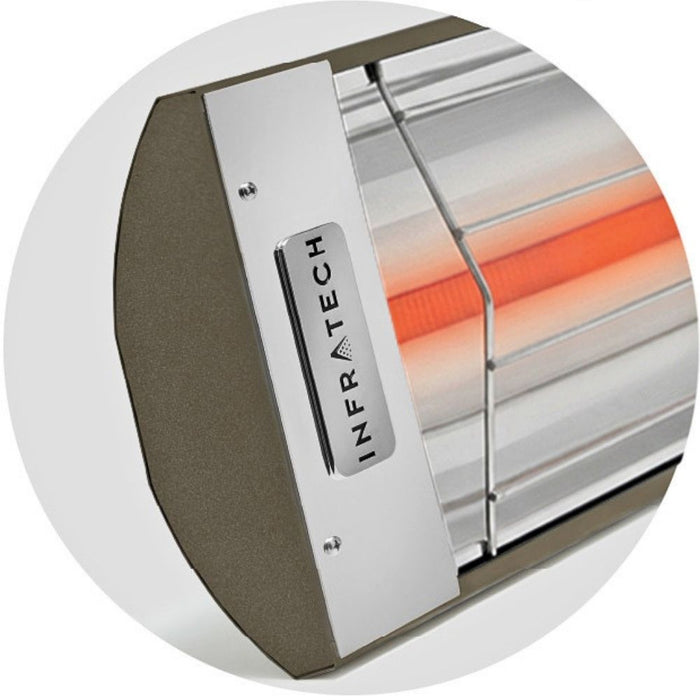

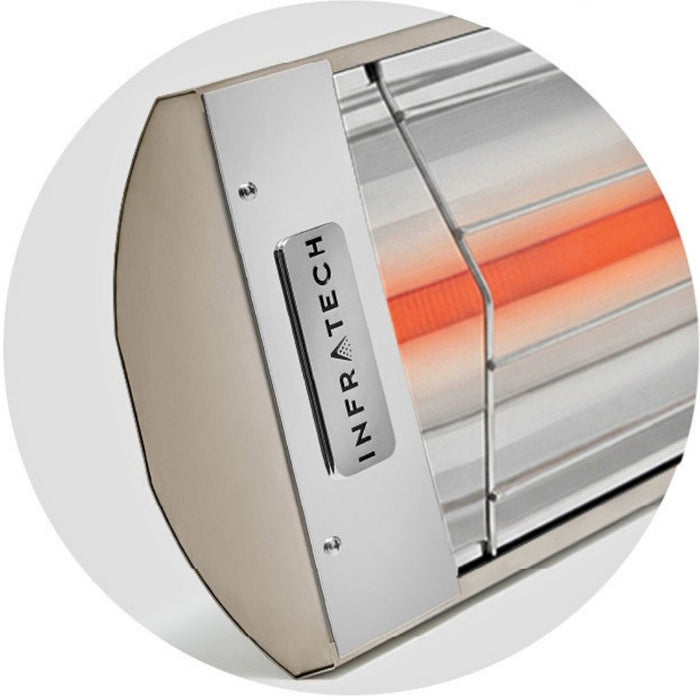

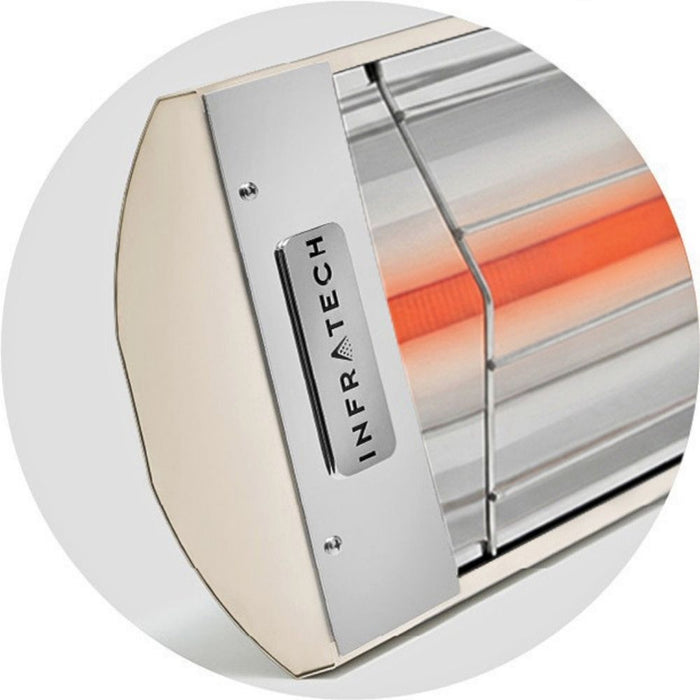

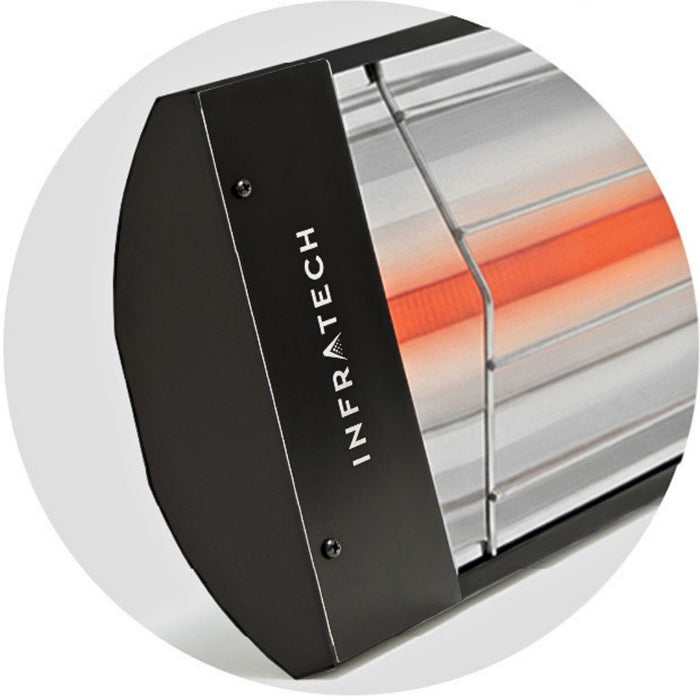

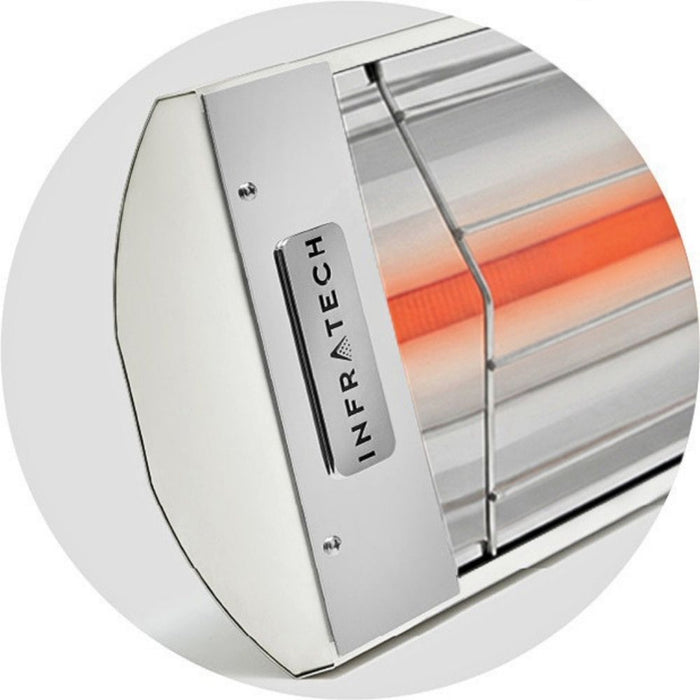

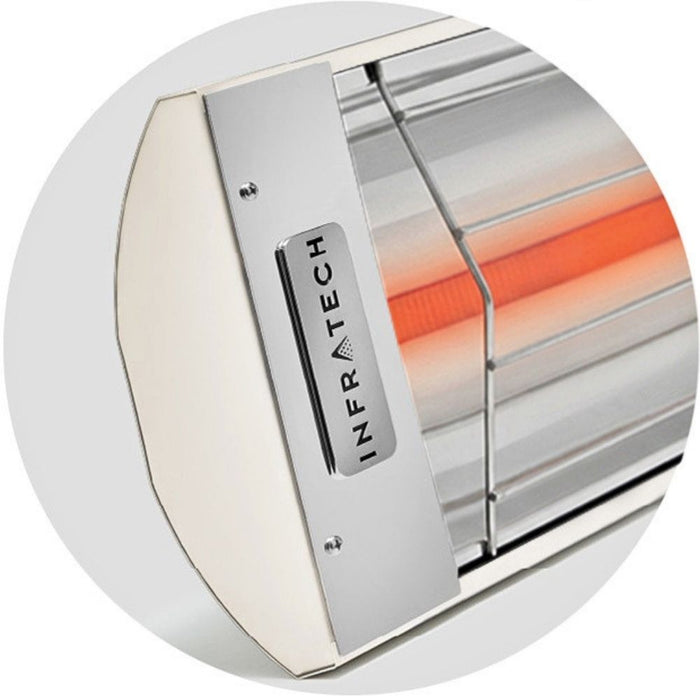

- Brushed stainless or eight standard powder-coat colors, with unlimited custom colors by quote
- UL & cUL listed, CE approved, and IPX4 rated — proudly made in Gardena, California
Answers to common questions
Do I need an electrician to install it?
Yes. Every C Series heater is permanently installed and hard wired by a licensed electrician to NEC and local codes — the housing is drilled and threaded for standard 1/2" conduit, and outdoor installs use components rated IPX4. There is no plug-in option.
Which voltage should I order?
Match the circuit your electrician will run: this model comes in 120V, 240V, 208V versions, and the element must match the supply — a 240V element on 208V supply will warm but not glow or heat properly.
How much area does it actually heat?
Infratech rates the C-1512 at 5' x 5' average coverage from a 6' – 7' mounting height — up to 7' x 7' in protected areas, and closer to 3' x 3' in extreme cold or wind. Heating from two sides beats one big heater when you can do it.
Can it stay outside in the rain?
It's all-weather construction, and the manual requires outdoor wiring components with a minimum IPX4 rating — but Infratech recommends hanging it under a roof or weather cover when possible — it will last longer and look better protected from rain and snow.
What controls does it need?

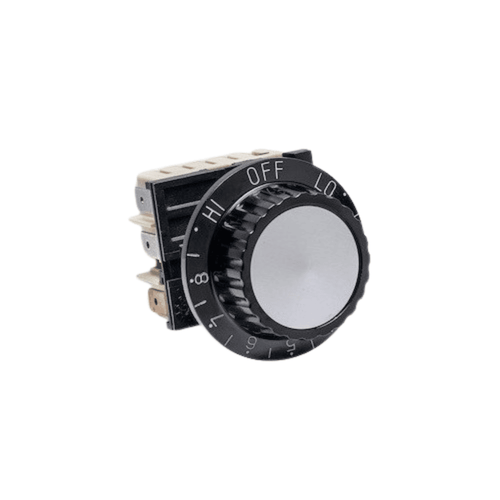

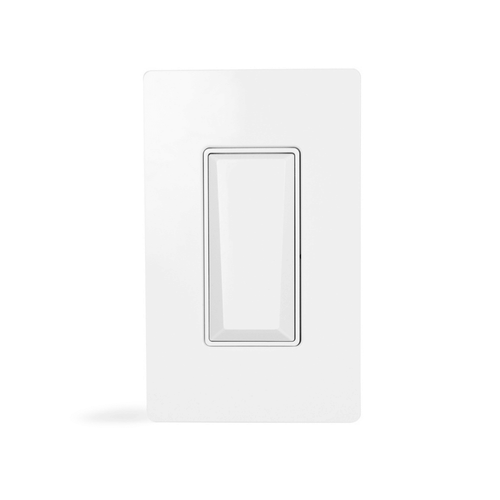

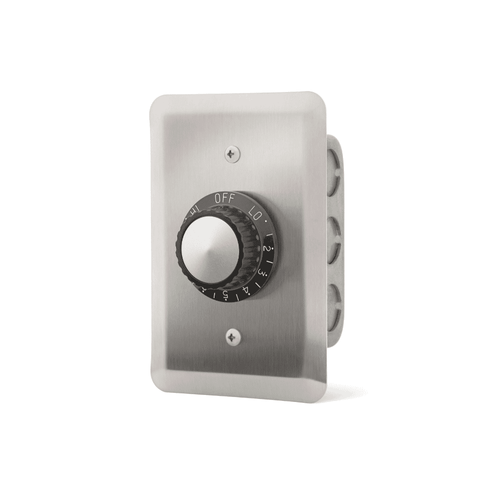

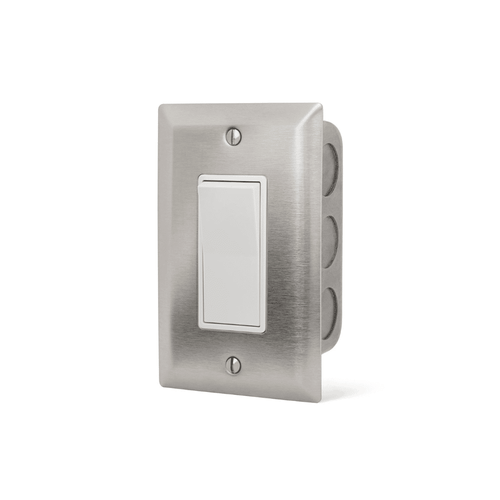

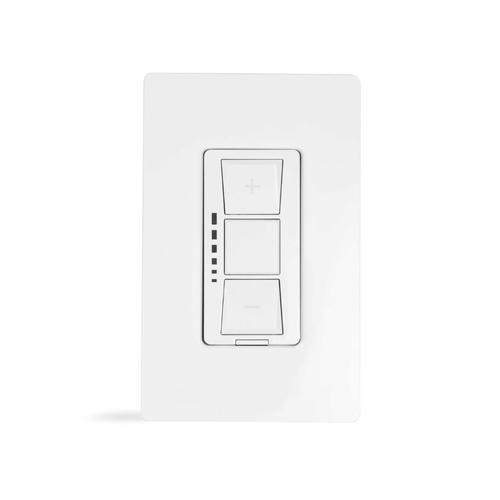

A control or switch is required and every Infratech control is sold separately — from simple on/off and duplex switches to INF regulators, the smart dimmer/switch, and zoned control panels. One caution from the manual: using competitor controls or accessories may void the Infratech warranty.
What's the difference between this and the Marine Grade version?
Construction. Every Infratech heater is corrosion-resistant 304 stainless steel; the Marine UpGrade version is 316 marine grade stainless for coastal, alpine, windy, and humid exposure. Same wattage and coverage — pick by environment.
What’s included, what’s required, and what’s optional?
-
Included in the box: 33" single-element quartz-tube heater in 304 stainless steel; 1,500 Watts of 93%-efficient infrared heat; Wall/ceiling mount swivel brackets; UL & cUL listed.
-
Required to complete the installation, purchased separately: An Infratech control or switch — every control option is sold separately; A dedicated circuit at your selected voltage, hard-wired in 1/2" conduit by a licensed electrician to NEC and local codes (components rated IPX4 outdoors).
-

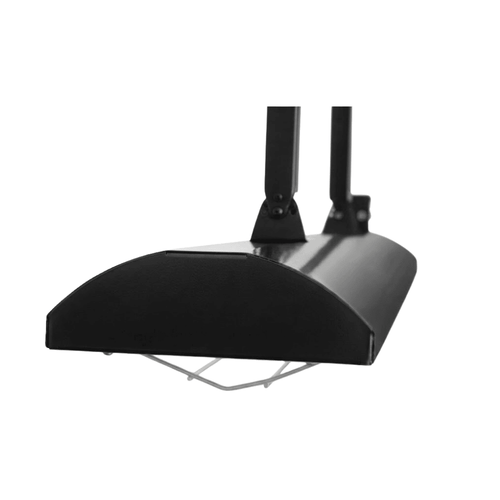

Optional: Options: drop mount and pole mount assemblies; Infratech smart and value controls to run it — the heater itself ships complete with its brackets.
Does buying online affect my Infratech warranty?
No — The Torch Guys is 1 of only 5 authorized Infratech online dealers in the United States, so the full 3-year limited parts warranty applies. And we handle it for you: we register your heater with Infratech (which also enrolls you in their Heater Maintenance Program for free replacement end covers) and we file any claim directly with the factory, so you're never chasing paperwork.
