The Motif Collection from Infratech
Shop the Motif Collection by fascia: a laser-cut decorative cover in one of four architectural styles over a 304 stainless steel C- or CD-Series heater. Seven heater sizes from 2,000 W (39") to 6,000 W (61-1/4"), 240V/208V/277V/480V, from $777, 93% efficient, UL & cUL listed, made in Gardena, California, and backed by a 3-year parts warranty.
Choose the Motif Collection when the heater is going somewhere people look — start from the fascia style that suits the architecture, then pick the heater size and voltage to match the space.
It is not available for 33" heaters — Motif fascias fit only the 39", 48" and 61-1/4" C- and CD-Series bodies. These are hard-wired heaters (no plug), they are not a replacement for forced air or ductless heating, and the 277V and 480V variants are rated "Commercial Use Only."
Specifications
Keep 18" of clearance at the sides and ends, 36" in front, and 6" behind the heater; the minimum mounting height is 6 ft (UL) or 8 ft (UL/cUL). Every variant is hard-wired on a dedicated circuit at the voltage you select, drawing 6.3 A to 25 A depending on the heater and voltage.
Motif Collection vs. its closest Infratech options
A Marine Grade version in 316 stainless — heater and fascia both — starts at from $1,077 against from $777 here. The same fascias can also be added from any eligible C- or CD-Series heater page, or retrofitted to a heater you already own with a Motif Upgrade Kit.
Features

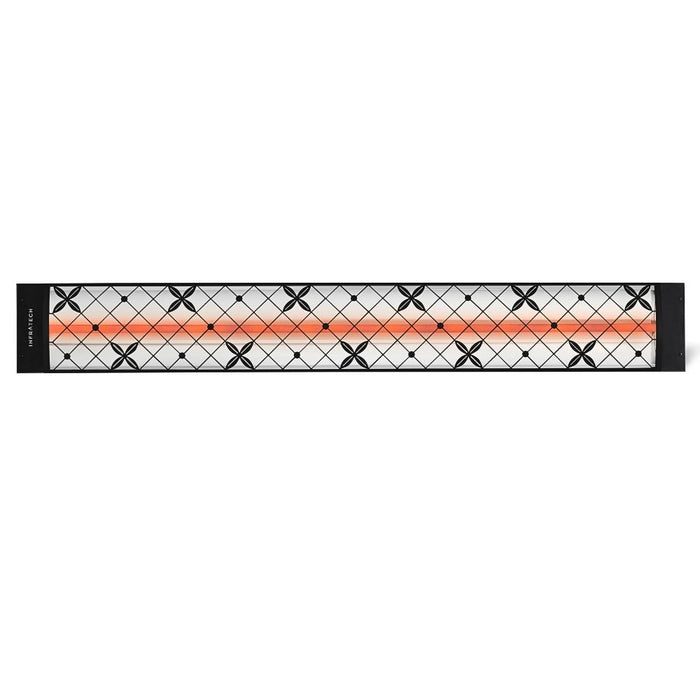

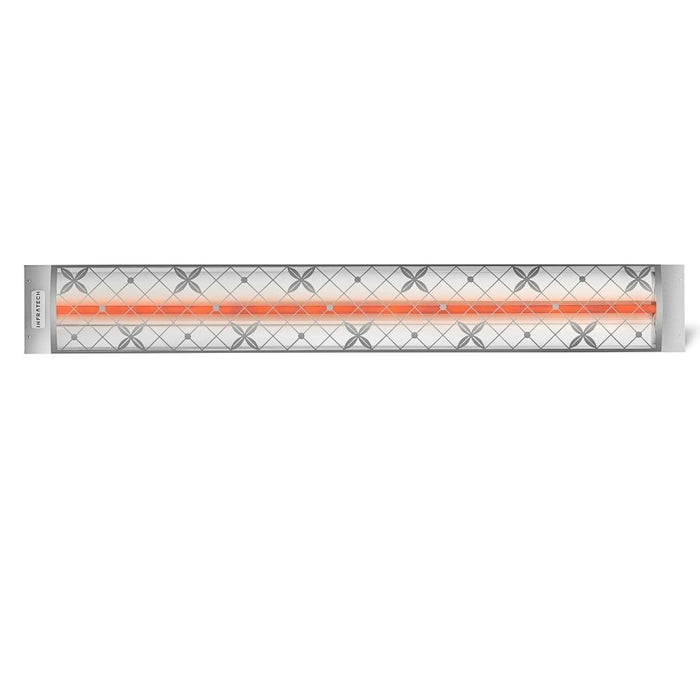

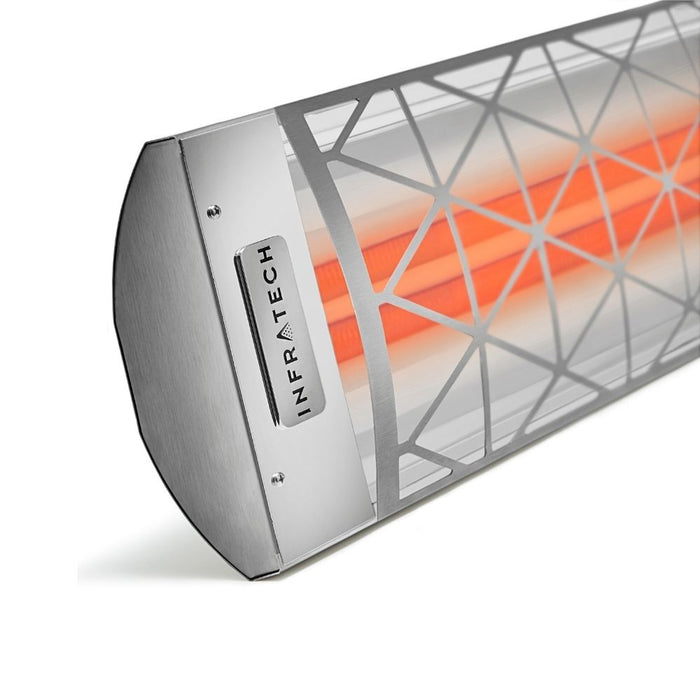

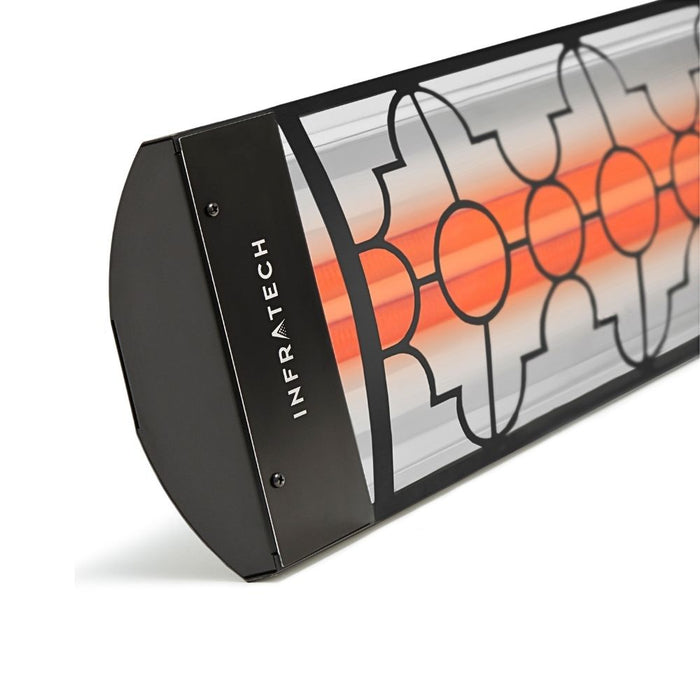

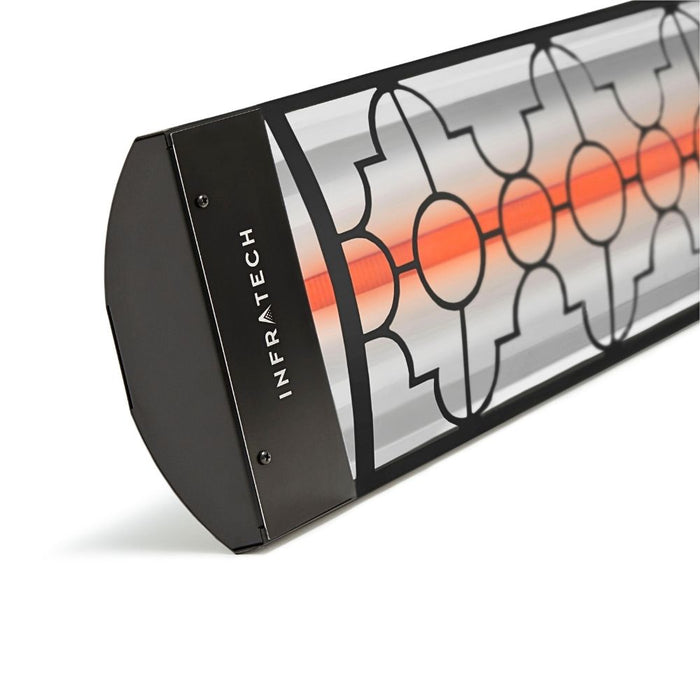

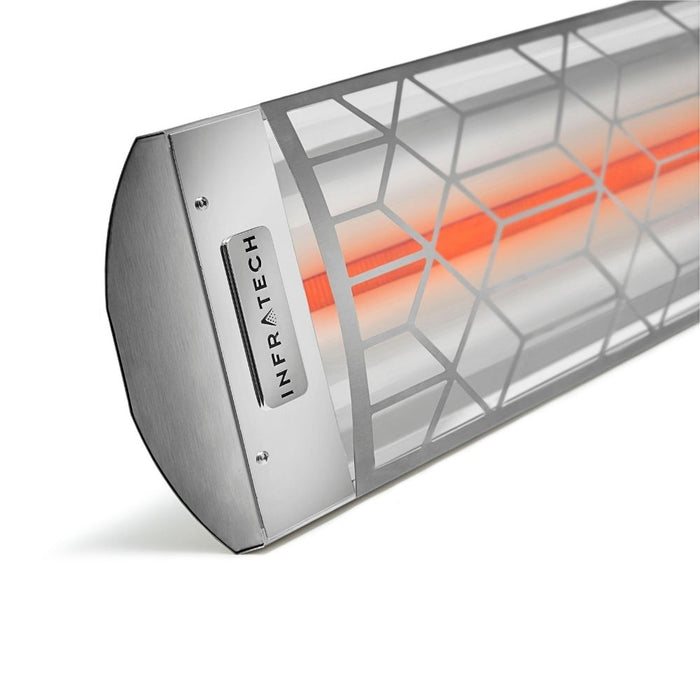

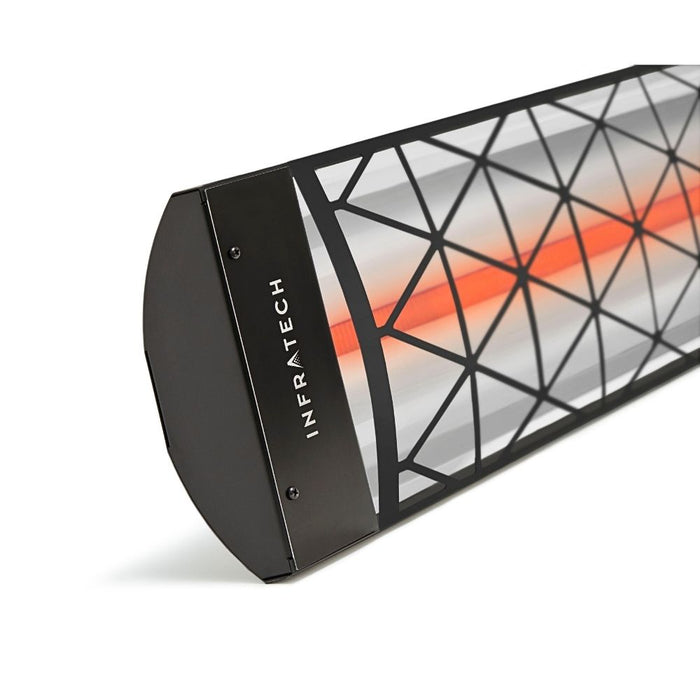

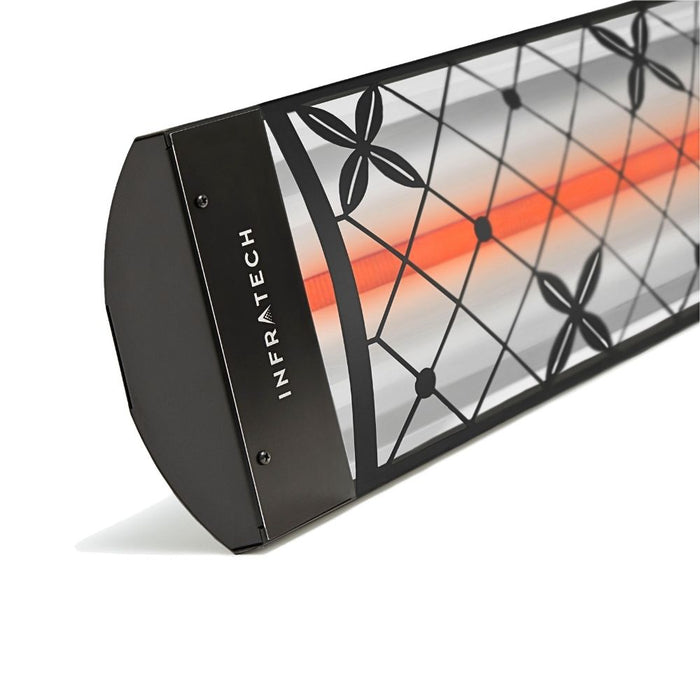

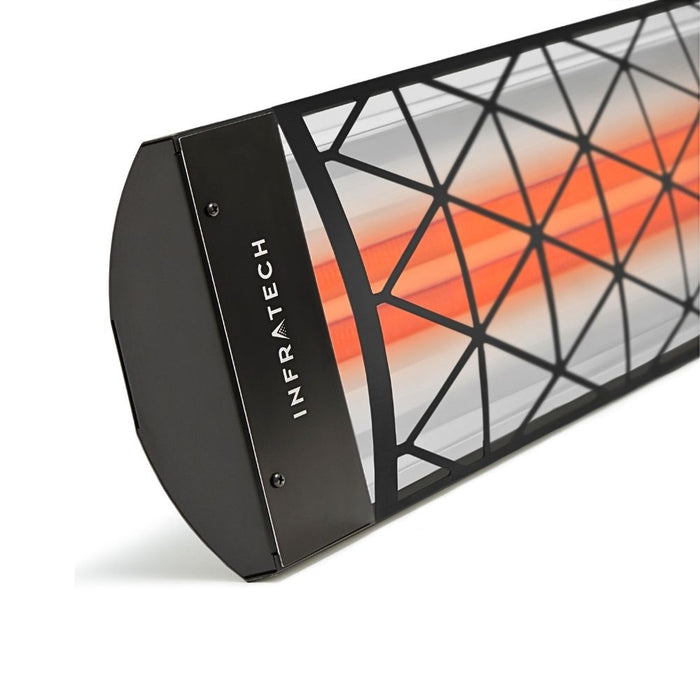

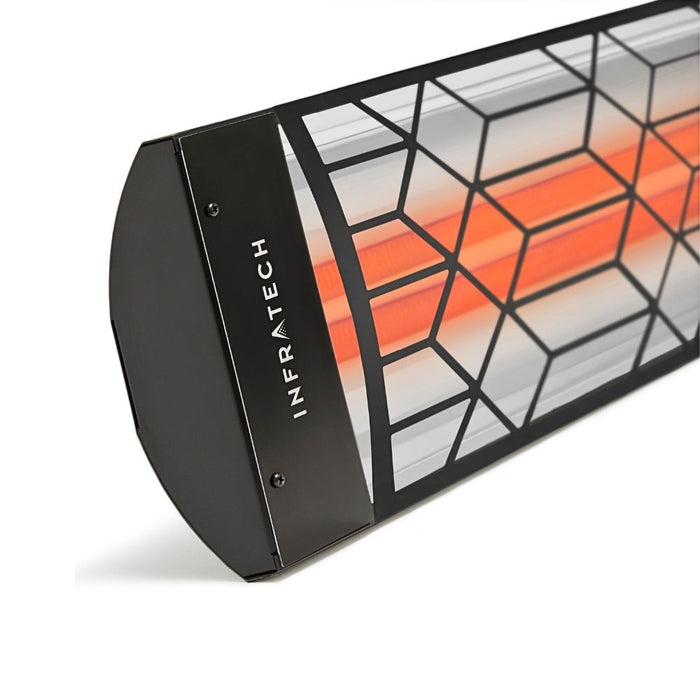

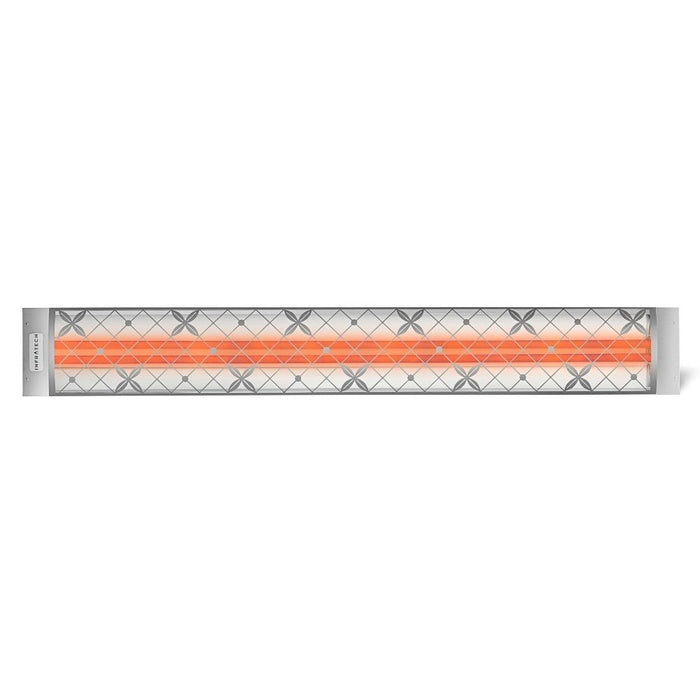

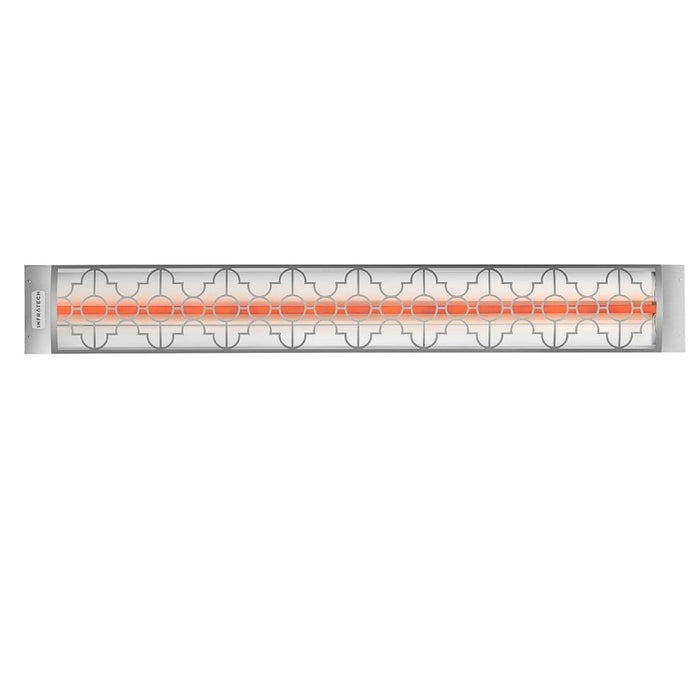

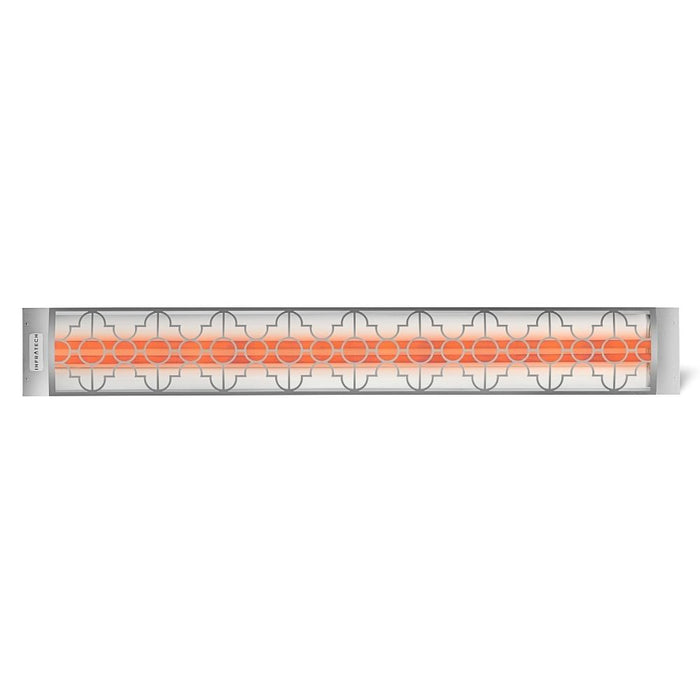

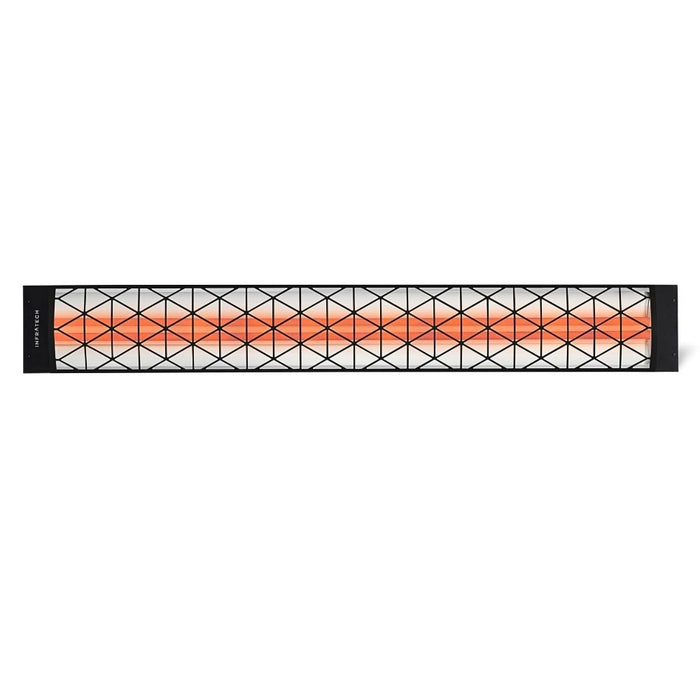

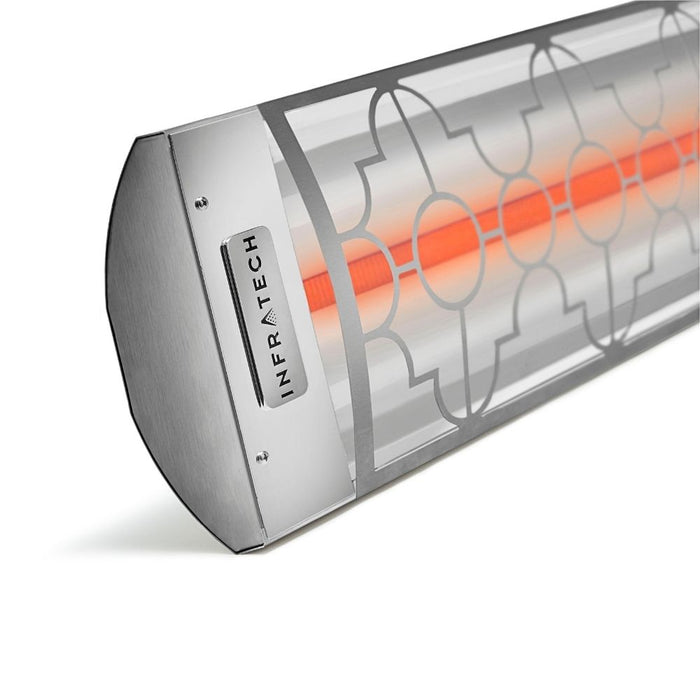

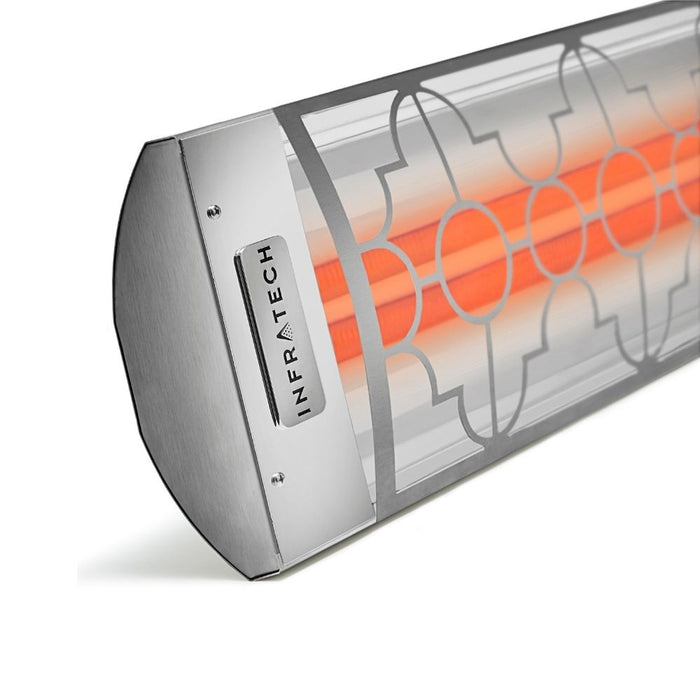

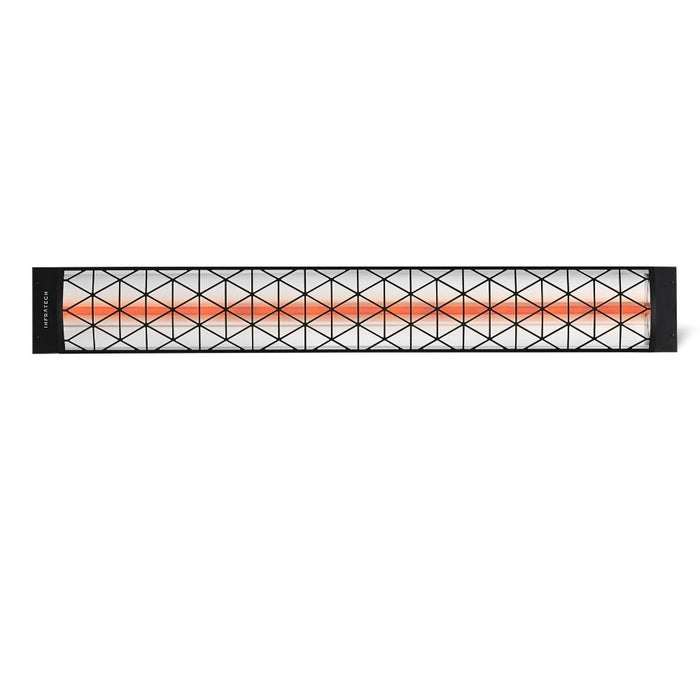

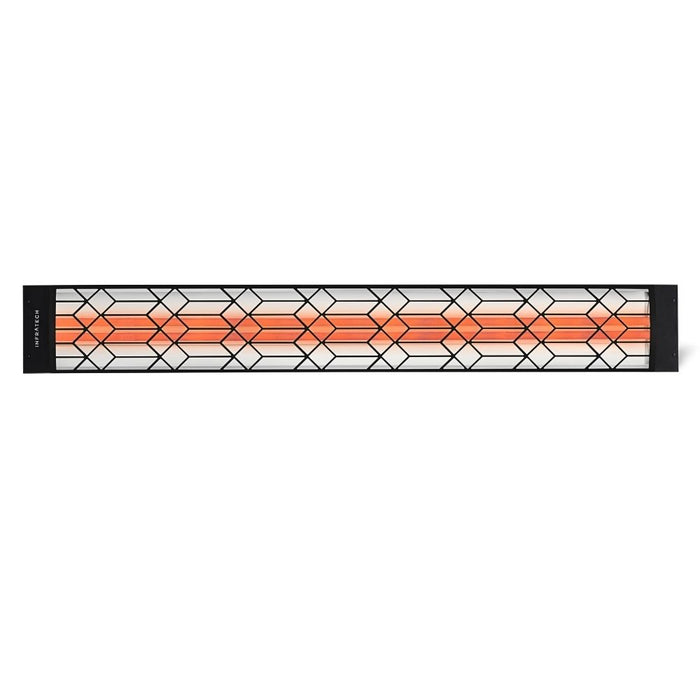

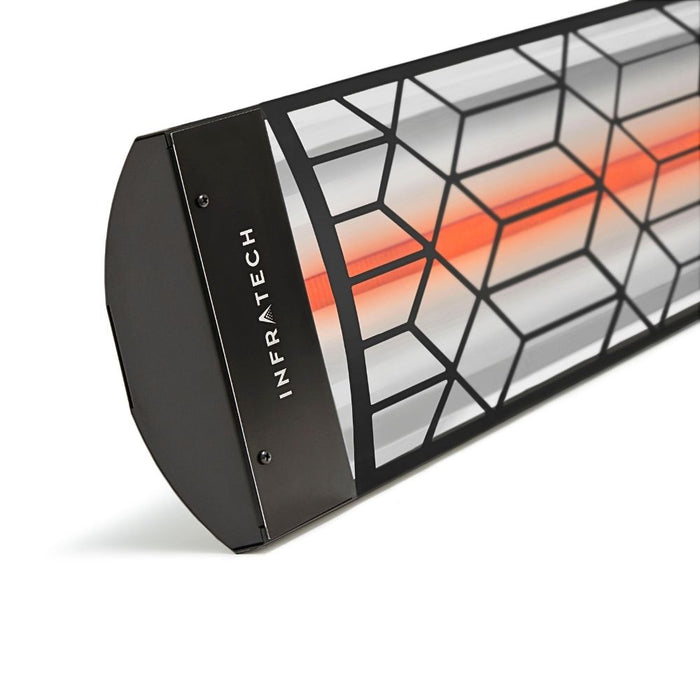

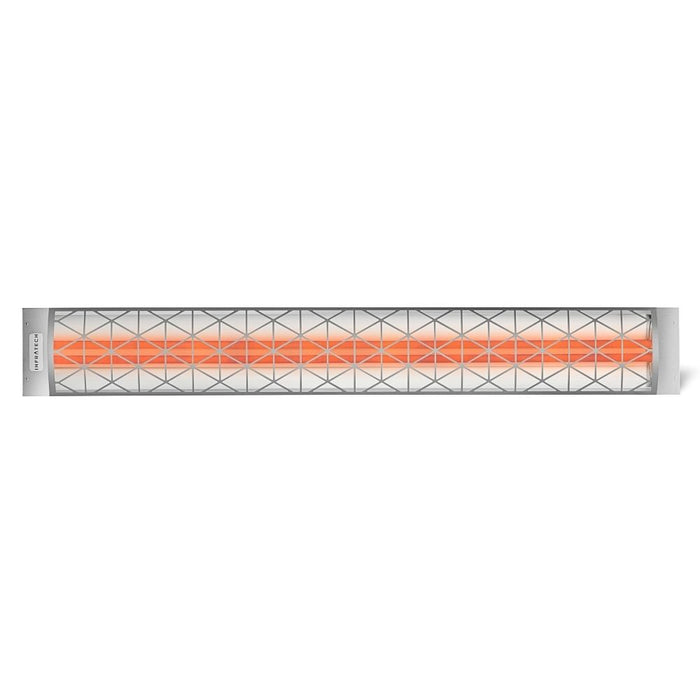

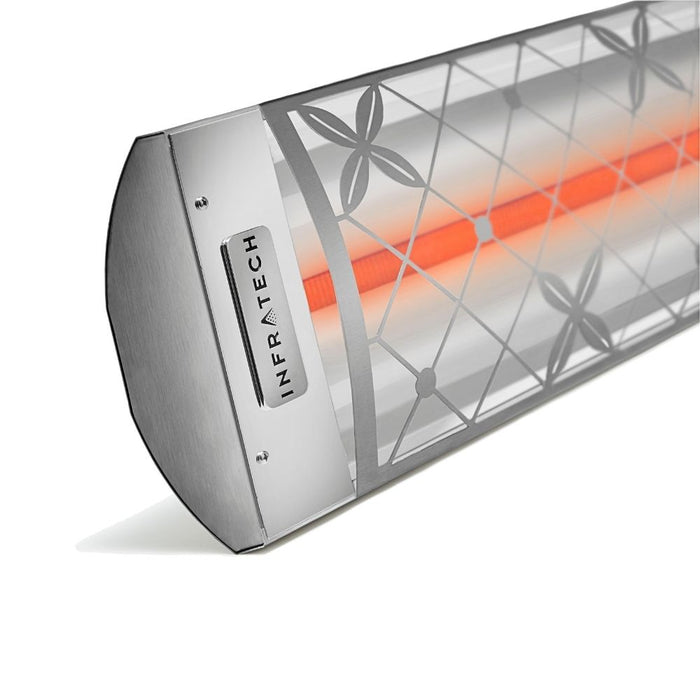

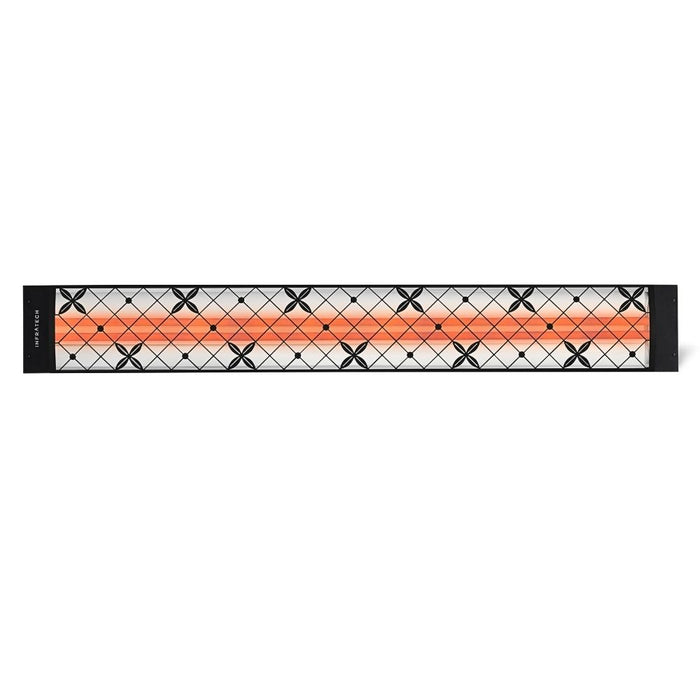

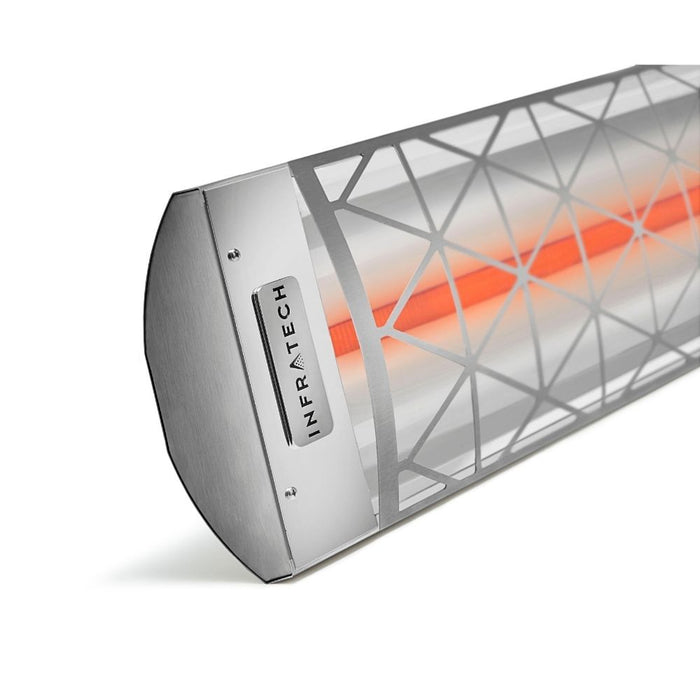

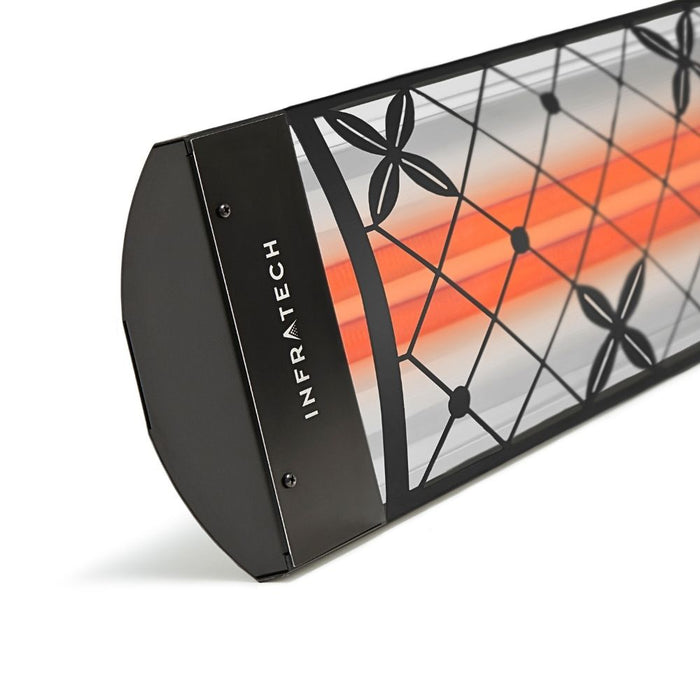

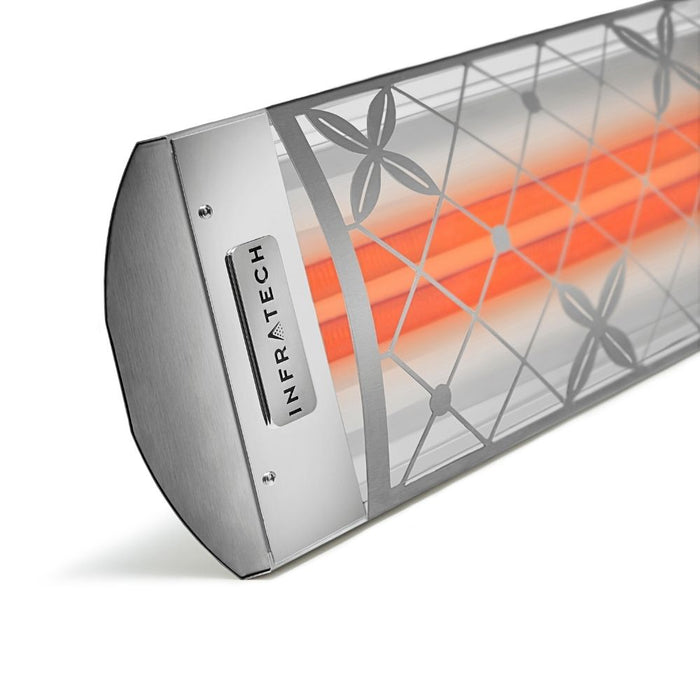

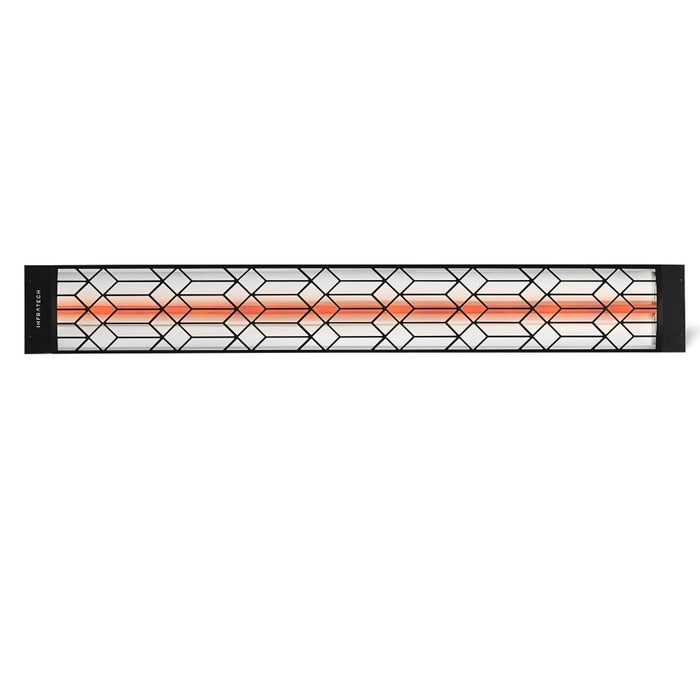

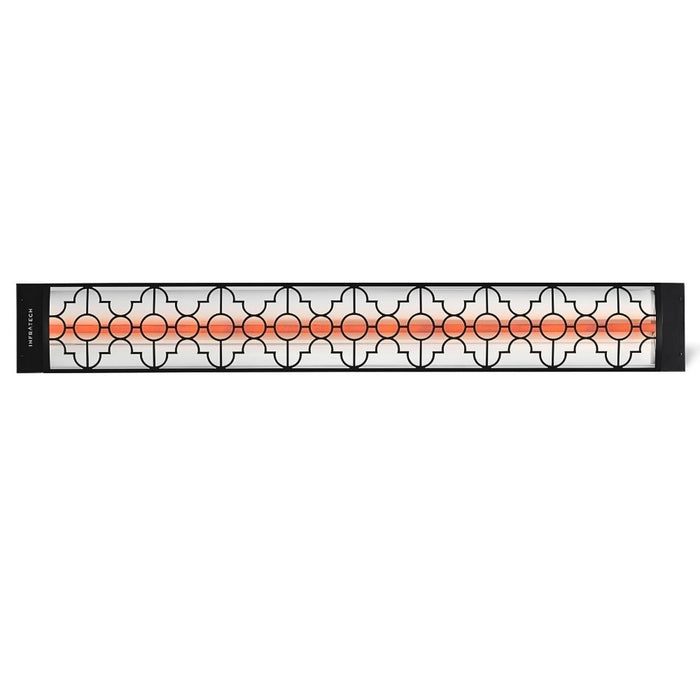

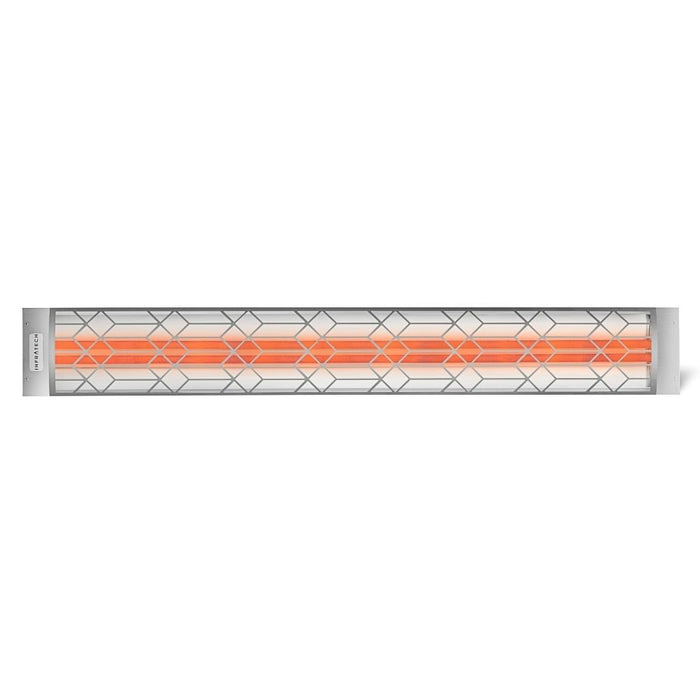

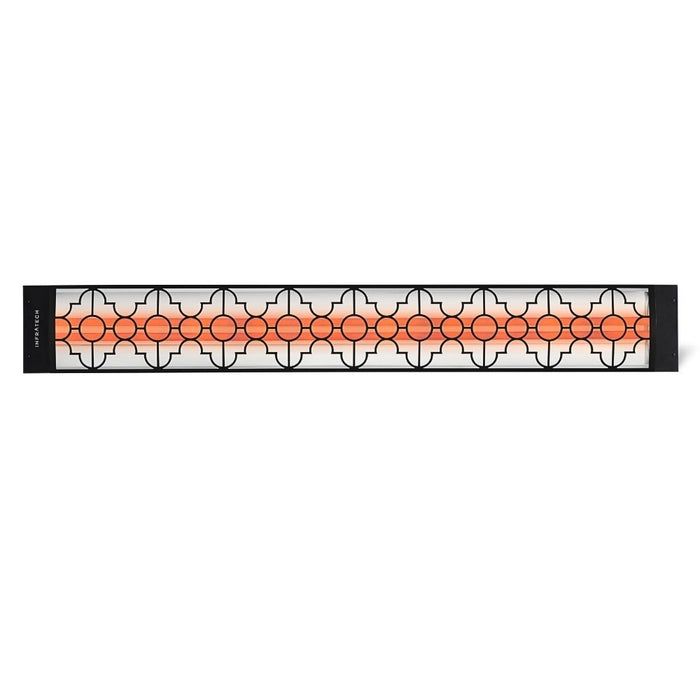

- Four laser-cut fascia styles — Contemporary, Craftsman, Mediterranean, and Traditional — each drawn from a distinct architectural tradition
- Fascia in stainless steel or black, snapping seamlessly onto the 304 stainless heater body
- Seven heater sizes from 2,000 W single element to 6,000 W dual element, covering 6' x 6' up to 11' x 11'
- 93% efficient, emission-free infrared heat with a high output safety grid
- UL & cUL listed, CE approved, and IPX4 rated — proudly made in Gardena, California
Answers to common questions
What’s included, what’s required, and what’s optional?
-
Included in the box: 39" to 61-1/4" C-Series or CD-Series quartz-tube heater in 304 stainless steel; One laser-cut Motif fascia and two matched end covers; 2,000 W to 6,000 W of 93%-efficient infrared heat; Wall/ceiling mount swivel brackets; UL & cUL listed.
-
Required to complete the installation, purchased separately: An Infratech control or switch — every control option is sold separately; A dedicated circuit at your selected voltage, hard-wired in 1/2" conduit by a licensed electrician to NEC and local codes (components rated IPX4 outdoors).
-
Optional: Pole and drop mount assemblies and Infratech smart and value controls — the heater ships complete with its fascia, end covers and brackets.
What comes in the box?
The heater you select with its Motif fascia and two matched end covers (single element for a C-Series heater, dual element for a CD-Series), plus the wall/ceiling swivel mounting brackets. Controls are sold separately.
Do I still choose a heater color?
No. The fascia covers the heater housing, so the powder-coat color options you see on a bare C- or CD-Series heater don't apply here — you're choosing the fascia's finish instead, in stainless steel or black.
Can I add a fascia to a heater I already own?
Yes — the Motif Upgrade Kit retrofits an existing 39", 48" or 61-1/4" C- or CD-Series heater with one fascia and the matching pair of end covers. Order the kit sized to your heater, and specify single or dual element end covers.
Do I need an electrician?
Yes. Every Motif Collection heater is permanently installed and hard wired by a licensed electrician to NEC and local codes — the housing is drilled for standard 1/2" conduit, and outdoor installs use components rated IPX4. There is no plug-in option.
Which voltage should I order?
Match the circuit your electrician will run: every Motif heater comes in 240V, 208V, 277V and 480V, and the element must match the supply. The 277V and 480V variants are rated "Commercial Use Only" per the manual — don't order those for a residence.
Does buying online affect my Infratech warranty?
No — The Torch Guys is 1 of only 5 authorized Infratech online dealers in the United States, so the full 3-year limited parts warranty applies. And we handle it for you: we register your heater with Infratech (which also enrolls you in their Heater Maintenance Program for free replacement end covers) and we file any claim directly with the factory, so you're never chasing paperwork.
