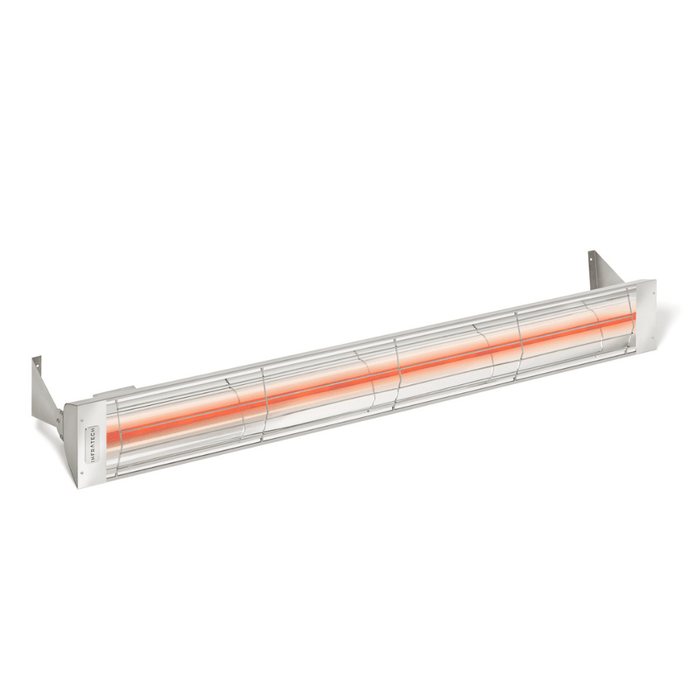

The W Series W-3000 Marine Grade from Infratech
3,000 watts of 93%-efficient infrared heat from a 61-1/4" single-element quartz-tube heater in 316 marine grade stainless steel: an average 8' x 8' of coverage from a 7' – 9' mounting height, 240V, 277V, 208V, 480V variants, from $1,075, UL & cUL listed, made in Gardena, California, and backed by a 3-year parts warranty.
Choose the Marine UpGrade if this heater will live near saltwater, on an exposed roof deck, or anywhere coastal, alpine, windy, or humid conditions punish standard stainless — 316 holds its finish where 304 shows tea staining first.
It is not a furnace substitute — Infratech states these radiant heaters are not a replacement for forced air or ductless heating. It must be hard-wired by a licensed electrician (there is no plug), and the 277V and 480V variants are rated "Commercial Use Only" — do not order those voltages for a home.
Specifications
Keep 18" of clearance at the sides and ends, 36" in front, and 6" behind the heater; wall mounts sit at least 12" below the ceiling angled 30–60° down, and the minimum mounting height is 6' (UL) or 8' (UL/cUL). Power is 240V, 277V, 208V, 480V depending on the variant, drawing 12.5 A at 240V / 11 A at 277V / 14 A at 208V / 6 A at 480V, on a dedicated hard-wired circuit.
W-3000 Marine Grade vs. its closest Infratech options
The standard 304 stainless version of this 3,000-watt W Series heater is from $825 — the Marine UpGrade adds 316 stainless for from $1,075. Same wattage, same coverage; the difference is corrosion resistance in exposed environments.
Features
- 316 marine grade stainless steel construction — built for coastal, alpine, windy, and humid exposure the standard 304 finish isn't
- 93% efficient, emission-free infrared heat from a single quartz-tube infrared element with a high output safety grid
- Covers an average 8' x 8' area from a 7' – 9' mounting height — up to 10' x 10' in protected spaces
- Five mounting choices — wall, ceiling, flush, pole, and drop pole — including the fully recessed flush mount look
- UL & cUL listed, CE approved, and IPX4 rated — proudly made in Gardena, California
Answers to common questions
Do I need an electrician to install it?
Yes. Every W Series heater is permanently installed and hard wired by a licensed electrician to NEC and local codes — the housing is drilled and threaded for standard 1/2" conduit, and outdoor installs use components rated IPX4. There is no plug-in option.
Which voltage should I order?
Match the circuit your electrician will run: this model comes in 240V, 277V, 208V, 480V versions, and the element must match the supply — a 240V element on 208V supply will warm but not glow or heat properly. The 277V and 480V variants are rated "Commercial Use Only" per the manual — don't order them for a residence.
How much area does it actually heat?
Infratech rates the W-3024 at 8' x 8' average coverage from a 7' – 9' mounting height — up to 10' x 10' in protected areas, and closer to 6' x 6' in extreme cold or wind. Heating from two sides beats one big heater when you can do it.
Can it stay outside in the rain?
It's all-weather construction, and the manual requires outdoor wiring components with a minimum IPX4 rating — but Infratech recommends hanging it under a roof or weather cover when possible — it will last longer and look better protected from rain and snow. For the Marine UpGrade, rinse salt deposits with fresh water and a soft cloth after storms or heavy spray — 316 is stainless, not stain-free.
What controls does it need?

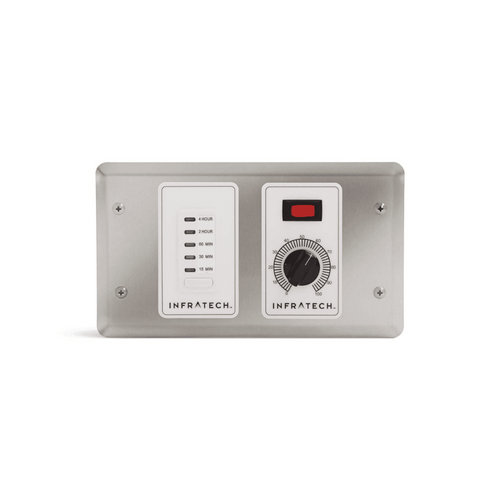

A control or switch is required and every Infratech control is sold separately — from simple on/off and duplex switches to INF regulators, the smart dimmer/switch, and zoned control panels. One caution from the manual: using competitor controls or accessories may void the Infratech warranty.
What’s included, what’s required, and what’s optional?
-
Included in the box: 61-1/4" single-element quartz-tube heater in 316 marine grade stainless steel; 3,000 Watts of 93%-efficient infrared heat; Wall/ceiling mount swivel brackets; UL & cUL listed.
-
Required to complete the installation, purchased separately: An Infratech control or switch — every control option is sold separately; A dedicated circuit at your selected voltage, hard-wired in 1/2" conduit by a licensed electrician to NEC and local codes (components rated IPX4 outdoors).
-
Optional: Options: a flush mount frame or pole mount for recessed or open-air installs; Infratech smart and value controls to run it — the heater itself ships complete with its brackets.
Does buying online affect my Infratech warranty?
No — The Torch Guys is 1 of only 5 authorized Infratech online dealers in the United States, so the full 3-year limited parts warranty applies. And we handle it for you: we register your heater with Infratech (which also enrolls you in their Heater Maintenance Program for free replacement end covers) and we file any claim directly with the factory, so you're never chasing paperwork.
