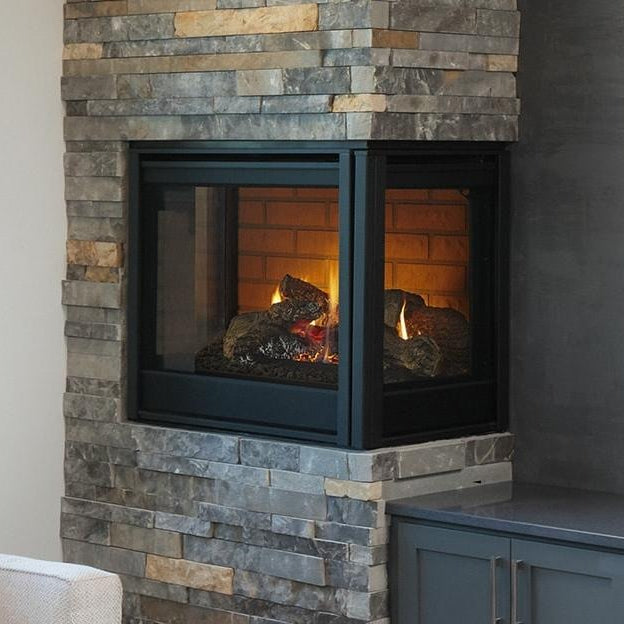

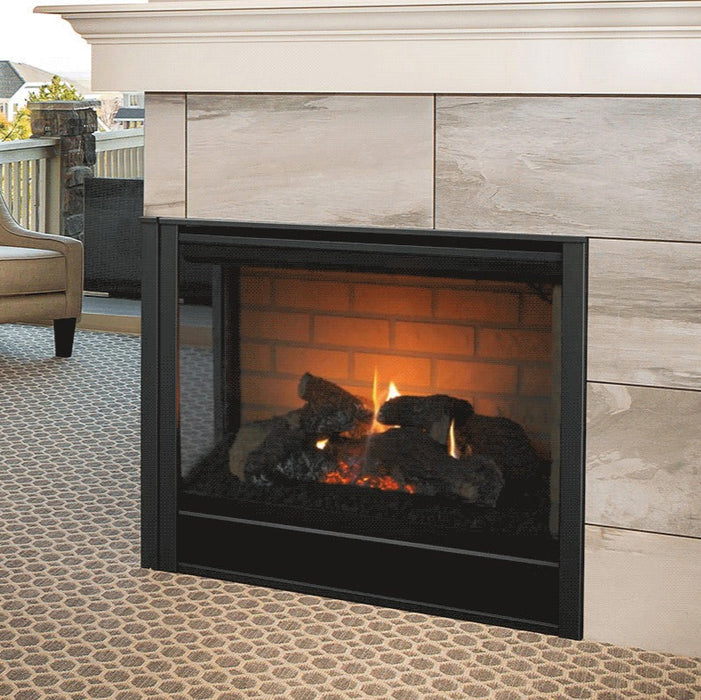

Majestic Corner 36" Direct Vent Multi Sided Gas Fireplace
What's Included?
Here's what ships in the box and what you'll choose above before checkout. Not sure what you need? Call us at (410) 324-6322 and our team will spec the right setup.
Here's what ships in the box and what you'll choose above before checkout. Not sure what you need? Call us at (410) 324-6322 and our team will spec the right setup.
The Majestic Corner 36" is a direct vent gas fireplace with glass on the front and one end, made in a left and a right corner version: up to 38,000 BTU/hr on natural gas or 35,500 on propane, 7 ceramic fiber logs over glowing embers and lava rock in a fiber brick firebox, IntelliFire Touch electronic ignition with battery backup, a 40" wide, 38-1/8" high and 24" deep framed opening, and venting off the top or the rear, from $4,529. It takes a corner firescreen front and an end panel.
Choose the Corner if you want a traditional log fire that wraps a corner of the room, seen from the front and the side: 7 ceramic fiber logs on glowing embers and lava rock against a fiber brick interior. Pick the left or right version to match your corner, and it is certified for bedrooms.
It is not right for you if you are looking for a contemporary bed of crushed glass. The Corner sets 7 ceramic fiber logs on glowing embers and lava rock in a fiber brick firebox, for a traditional fire you can see from two sides.
The framed opening is 40" wide, 38-1/8" high and 24" deep, adjusted for any interior sheathing, and the fireplace itself is 40-1/2" wide, 38" high and 24-1/2" deep. Keep 34-1/8" to the ceiling, 1/2" at the closed end and 36" clear in front of each glass side. It sits on a combustible floor, on a hard metal or wood surface rather than carpet, vinyl or tile. A non-combustible board comes installed above it. Mantel clearance depends on the mantel's depth and material and is charted in Figures 10.2 and 10.3 on page 50 of the installation manual. It takes an unswitched 110-120 VAC circuit and connects to your gas line at a 1/2" shut-off valve.
It is a direct vent fireplace on DVP pipe, or SLP pipe with an adapter, and it vents off the top or the rear; that choice is made at installation and cannot be changed later. Straight up off the top, it runs from 3 ft to 60 ft to a roof termination. Out through a wall off the top, horizontal reach depends on the rise before the elbow, up to 18 ft on 6 ft of rise, and the whole run stays within 50 ft. Straight out the rear, the run to the wall cap is 16" at most, and a rear-vent corner installation turns with two 90 degree elbows, not a 45. It needs its own vent. It is approved for the PVV-SLP, PVI-SLP-B and PVLP-SLP power vents with a wire harness and an IntelliFire control. Our team builds the vent package for your run; the parts are on pages 58 to 69 of the installation manual and the diagrams on pages 17 to 29.
The Corner has glass on its front and on one end, and the left and right versions put that glass end on opposite sides. Choose the one whose glass end faces into the room at your corner; Figure 3.3 on page 10 of the installation manual shows both in place. Each glass side needs 36" clear in front of it, and both versions run the same, at up to 38,000 BTU/hr on natural gas.
The Corner has glass on its long front side and on its open end. The front takes the corner firescreen front and the end takes the corner end panel, each with a built-in barrier that keeps hands off the hot glass. Choosing the black front above adds both. They ship in a separate box, and the fireplace is not run without them.
Yes. Mantel clearance depends on the mantel's depth and material: see Figure 10.2 on page 50 of the installation manual for a combustible mantel and Figure 10.3 for a non-combustible one. Mantel legs and wall projections are in Figures 10.4 to 10.6 on the same page, and wall surface temperatures above the opening are charted in Figure 2.1 on page 6. Send us your mantel depth and we'll help.
Indoors, in a framed corner, with 34-1/8" to the ceiling, 1/2" at the closed end and 36" clear in front of each glass side; it is not approved for an indoor/outdoor installation. It sits on a hard metal or wood surface, not directly on carpet, vinyl or tile. It is certified for bedrooms and bedsitting rooms, and may be installed as an OEM installation in a manufactured or mobile home. Adhesive vinyl flooring is not recommended. Rated input is for 0 to 2,000 ft and is reduced 4% per 1,000 ft above that in the USA.
Your gas line connects at the 1/2" shut-off valve with its flexible connector, and the fireplace needs an unswitched 110-120 VAC circuit to the junction box. Inlet pressure is 5" to 10" w.c. on natural gas and 11" to 13" w.c. on propane. It is built for natural gas, and choosing Propane above adds the conversion kit, which a qualified service technician installs.
No. The Torch Guys is an authorized Majestic dealer, and the warranty covers fireplaces bought from one. On a gas fireplace the firebox and heat exchanger carry 20 years on parts and 3 on labor, burners, logs and metal or fiber refractory 10 years on parts and 1 on labor, vented burners and logs 5 years, electrical components and glass liner panels 2 years, and all other parts 1 year. We will help you with any claim.
