Majestic DV Linear 36" Direct Vent Linear Gas Fireplace
What's Included?
Here's what ships in the box and what you'll choose above before checkout. Not sure what you need? Call us at (410) 324-6322 and our team will spec the right setup.
Here's what ships in the box and what you'll choose above before checkout. Not sure what you need? Call us at (410) 324-6322 and our team will spec the right setup.

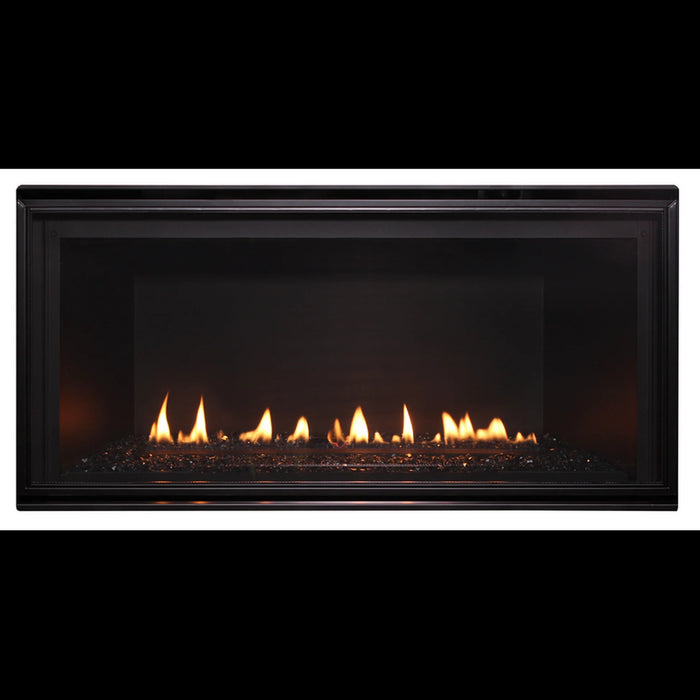

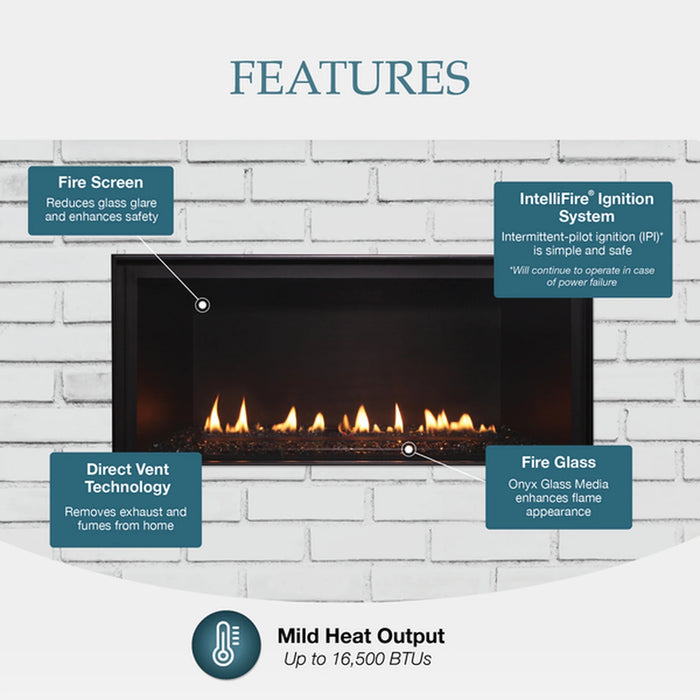

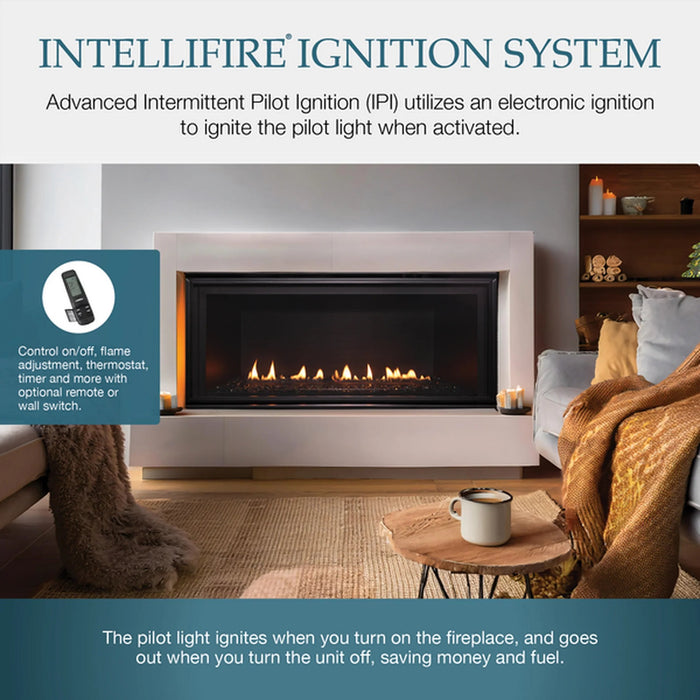

The Majestic DV Linear 36" is a linear direct vent gas fireplace with IntelliFire ignition and battery backup: 16,500 BTU/hr on natural gas or propane, onyx glass media, a 42" wide, 32-3/4" high and 17-3/4" deep framed opening and a 4" x 6-5/8" top vent, from $2,429. It is finished with the CFTF-36-BK Clean Face Trim front in black, which is sold separately and required to complete installation.

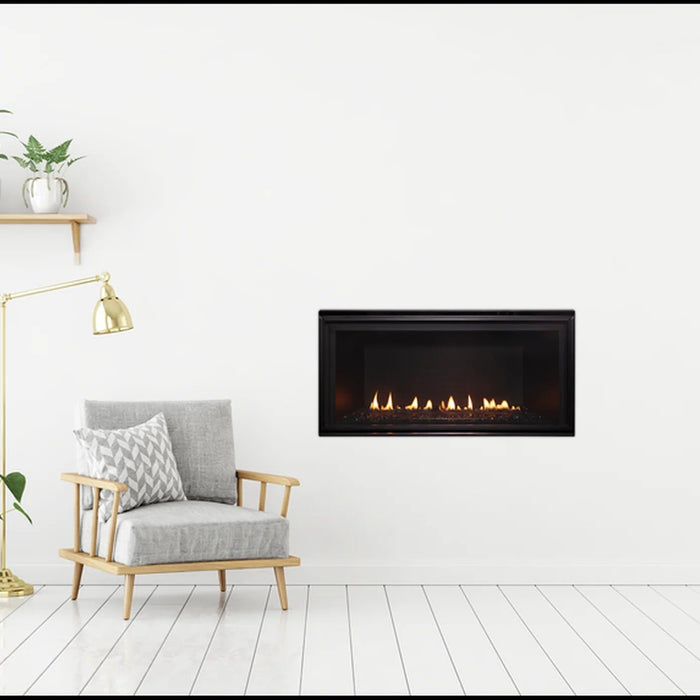

Choose the DV Linear 36" if you want a clean linear fire framed tightly into a wall. It needs only 1/2" of clearance at the back and sides, sits on a combustible floor with no hearth, can be raised off the floor, and is certified for bedrooms. Optional Passive Heat moves heat out a front, side or top discharge.
It is not right for you if you want a traditional log fire. The DV Linear 36" is a modern linear fireplace with a bed of onyx glass media.

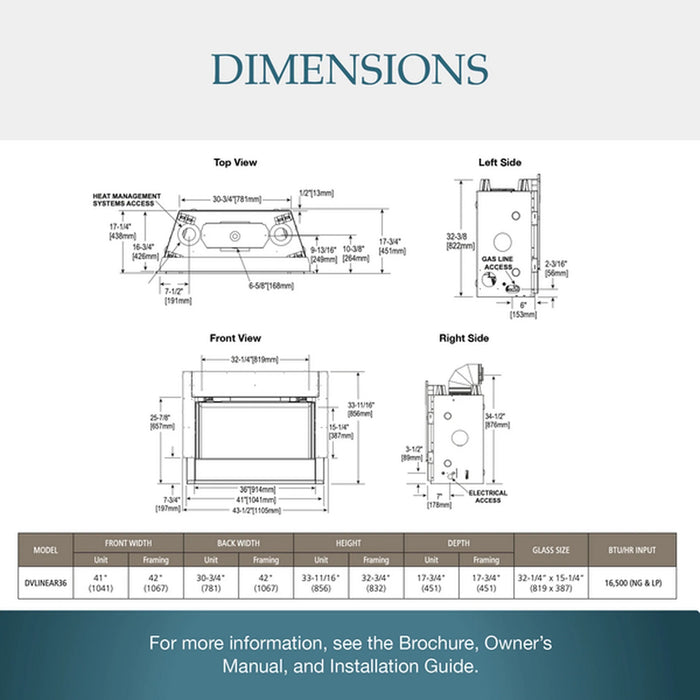

The framed opening is 42" wide, 32-3/4" high and 17-3/4" deep, plus an 8-5/8" opening for the vent pipe. Keep 1/2" of clearance at the back and sides, 31" from the top of the opening to the ceiling and 36" clear in front, and no hearth is needed. The non-combustible board ships with the fireplace, and the wall around it can be finished with 1/2" drywall. Mantel clearance depends on the mantel's depth and on Passive Heat, charted in Figures 10.3 to 10.7 on page 54 of the installation manual. It takes a 1/2" gas line and an unswitched 110-120 VAC circuit.
It vents off the top only, on 4" x 6-5/8" SLP direct vent pipe or SLP-FLEX, out through a wall or up through the roof: up to 60 ft straight up, up to 14 to 15 ft horizontal depending on the elbows, and 40 ft of combined run. One 90 degree elbow may go straight off the top with up to 1 ft of horizontal; with two elbows it may not. SLP-FLEX cuts the horizontal by 25%, except in a simple up and out. It can also vent up an existing masonry or factory-built chimney with the DV-46DVA-GCL adapter and LINK-DV30B liner kit, and it is approved for the PVI-SLP-B, PVLP-SLP and PVV-SLP power vents with the PV-IPI-CK kit and a wire harness. Our team builds the vent package for your home; termination clearances are on page 19 of the installation manual.
Yes. The CFTF-36-BK Clean Face Trim front in black is the decorative barrier front for this fireplace, and its barrier mesh keeps hands away from the hot glass. It does not ship with the fireplace and is required to complete installation, so add it to your order unless you already have one.
Inside a framed wall, with 1/2" of clearance at the back and sides, 31" from the top of the opening to the ceiling and 36" clear in front. It can sit on a combustible floor with no hearth, or be raised off the floor, on a hard metal or wood surface the full width and depth. It is certified for bedrooms and bedsitting rooms, and may be installed as an OEM installation in a manufactured or mobile home. Rated input is for 0 to 2,000 ft and is reduced 4% per 1,000 ft above that in the USA.
A 1/2" gas line to the shut-off valve and flex connector that come with it, at 5" to 10" w.c. on natural gas or 11" to 13" w.c. on propane, plus an unswitched 110-120 VAC circuit wired with 14-2 AWG with ground to the junction box. It is built for natural gas, and choosing Propane above adds the LP conversion kit, which a qualified technician installs.
No. The Torch Guys is an authorized Majestic dealer, and the warranty covers fireplaces bought from one. On a gas fireplace the firebox and heat exchanger carry 20 years on parts and 3 on labor, burners, logs and metal or fiber refractory 10 years on parts and 1 on labor, electrical components and glass liner panels 2 years, and all other parts 1 year. We will help you with any claim.
