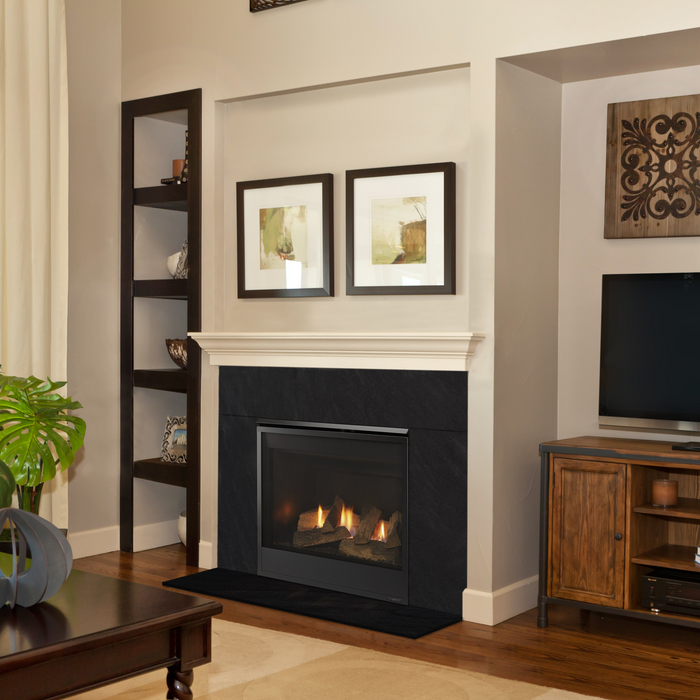

Majestic Mercury 32" Direct Vent Gas Fireplace
What's Included?
Here's what ships in the box and what you'll choose above before checkout. Not sure what you need? Call us at (410) 324-6322 and our team will spec the right setup.
Here's what ships in the box and what you'll choose above before checkout. Not sure what you need? Call us at (410) 324-6322 and our team will spec the right setup.
The Majestic Mercury 32" is a direct vent gas fireplace with six ceramic fiber logs, glowing embers and a full firescreen front and hood standard: up to 19,100 BTU/hr on natural gas or propane, IntelliFire electronic ignition with battery backup, a 27-3/16" x 18-1/16" tempered glass opening, a 37" wide, 34-3/4" high and 16-1/4" deep framed opening and a choice of top or rear vent, from $2,209.
Choose the Mercury 32" if you want a traditional log fire with no front or media to pick: the logs, embers, front and hood all come with it. It vents off the top or the rear, so you can pick whichever suits your wall or roof. With only 1/2" of clearance at the back and sides and no raised hearth, it frames tightly into a wall, and it is also certified for bedrooms.
It is not right for you if you are looking for a linear fire on a bed of glass. The Mercury 32" sets its flames among six ceramic fiber logs over glowing embers, for a traditional log fire.
The framed opening is 37" wide, 34-3/4" high and 16-1/4" deep, with 12" more depth for rear venting with a 90 degree elbow, and the fireplace itself is 36" wide, 34-5/16" high and 16-5/16" deep. Keep 1/2" of clearance at the back and sides, 32" from the top of the hood to the ceiling and 36" clear in front, and no raised hearth is needed. The metal front takes non-combustible facing only. Mantel clearance depends on the mantel's depth and is charted in Figure 10.2 on page 49 of the installation manual, with mantel legs and wall projections in Figures 10.3 to 10.5 on page 50. It takes a 1/2" gas line and an unswitched 110-120 VAC circuit.
It vents off the top on 4" x 6-5/8" SLP or SLP-FLEX pipe, or off the rear on 5" x 8" DVP pipe, out through a wall or up through the roof. The fireplace is set up for one or the other at installation, and that cannot be changed later. Off the top it runs up to 60 ft straight up, up to 15 ft horizontal and 40 ft of combined run where elbows are used, with up to four 90 degree elbows. Off the rear it runs 24" straight out through a wall with no elbow, or up to 14-1/2 ft horizontal and 40 ft of combined run, with up to three 90 degree elbows. How far it can go sideways depends on the vertical rise before the first elbow, charted from page 19 of the installation manual, and SLP-FLEX cuts the total horizontal by 25%. It can also vent up an existing non-combustible chimney with the DV-46DVA-GCL adapter and LINK-DV30B kit, and it is approved for the three power vents listed on page 56 of the installation manual, with the PV-IPI-CK kit, a wire harness and an RC100, RC200 or RC300 control. Our team builds the vent package for your run; the approved parts are on page 56 of the installation manual and the termination clearances on pages 13 and 14.
A wall switch, a wall thermostat or a remote control can turn it on and off, and the wall switch kit and remotes offered below are sold separately. The white wall switch kit comes with 20 ft of wire, and 12 ft of control wire comes with the fireplace. The SMART-STAT-HHT remote adds a temperature readout, thermostat mode and timer mode. The RCT-MLT-HHT remote adds fan speed and flame control as well. Without the RCT-MLT-HHT, the flame height is set with a knob on the gas valve inside the control cavity. Battery backup keeps it lighting in a power outage, though a fan and a remote do not run on battery.
It runs up to 19,100 BTU/hr on natural gas or propane, down to 13,500 on natural gas and 14,500 on propane, and the flame height is adjustable. An optional 160 CFM fan kit comes as the fan alone or with a rheostat and temperature sensor. It is approved as supplemental room heat or as a decorative appliance, not as a primary heat source.
Combustible mantel clearance depends on how deep the mantel is: see Figure 10.2 on page 49 of the installation manual, with mantel legs and wall projections in Figures 10.3 to 10.5 on page 50. For a TV, Majestic publishes good faith guidelines for a TV above a mantel in Figure 3.4 on page 9 of the owner's manual, and wall surface temperatures above the opening in Figure 2.1 on page 6 of the installation manual. They are not a guarantee against your TV maker's temperature limits, so check those too. You can also send us your mantel depth. We're here to help!
Inside a framed wall, on a flat wall, in a corner or in an alcove (Figure 3.4 on page 10 of the installation manual), with 1/2" of clearance at the back and sides, 32" from the top of the hood to the ceiling and 36" clear in front. It needs no raised hearth, and it sits on a hard metal or wood surface running its full width and depth, not directly on carpet, vinyl or tile. Adhesive vinyl flooring is not recommended. It is also certified for bedrooms, and may be installed as an OEM installation in a manufactured or mobile home. Rated input is for 0 to 2,000 ft and is reduced 4% per 1,000 ft above that in the USA.
On natural gas or propane it takes a 1/2" gas line to the shut-off valve and flex connector that come with it, plus an unswitched 110-120 VAC circuit to the junction box. Inlet pressure is 5" to 10" w.c. on natural gas and 11" to 13" w.c. on propane. It is built for natural gas, and choosing Propane above adds the LP conversion kit, which a qualified service technician installs.
No. The Torch Guys is an authorized Majestic dealer, and the warranty covers fireplaces bought from one. On a gas fireplace the firebox and heat exchanger carry 20 years on parts and 3 on labor, burners, logs and metal or fiber refractory 10 years on parts and 1 on labor, electrical components 2 years, and all other parts 1 year. We will help you with any claim.
