Majestic See Through 36" Direct Vent Multi Sided Gas Fireplace
What's Included?
Here's what ships in the box and what you'll choose above before checkout. Not sure what you need? Call us at (410) 324-6322 and our team will spec the right setup.
Here's what ships in the box and what you'll choose above before checkout. Not sure what you need? Call us at (410) 324-6322 and our team will spec the right setup.

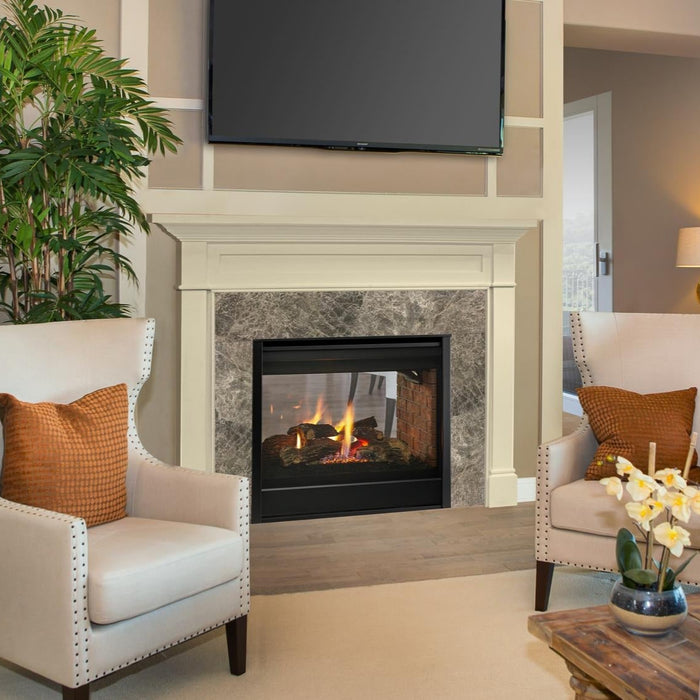

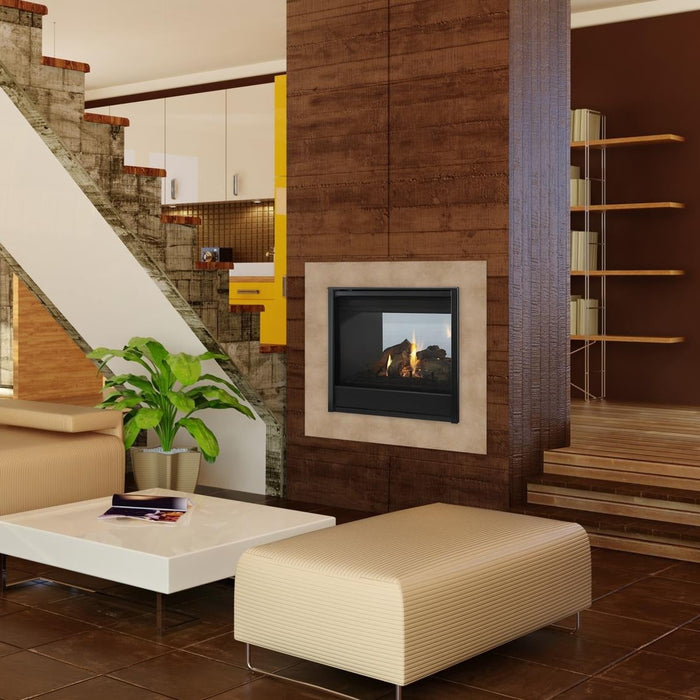

The Majestic See Through 36" is a direct vent gas fireplace with glass on both faces, built into a wall between two spaces: up to 38,000 BTU/hr on natural gas or 35,500 on propane, 7 ceramic fiber logs over glowing embers and lava rock, IntelliFire Touch electronic ignition with battery backup, a 43" wide, 38-1/8" high and 23" deep framed opening, and venting off the top or the rear, from $4,989. It takes two firescreen fronts.
Choose the See Through if you want one fire seen from two rooms, with the look of a traditional log fire: 7 ceramic fiber logs on glowing embers and lava rock. The interior comes in black steel, with weathered traditional brick or reflective black glass panels as upgrades, and it is certified for bedrooms.
It is not right for you if you are looking for a contemporary bed of crushed glass. The See Through sets 7 ceramic fiber logs on glowing embers and lava rock, for a traditional fire you can see from both sides of the wall.
The framed opening is 43" wide, 38-1/8" high and 23" deep, adjusted for any interior sheathing, and the fireplace itself is 42-1/2" wide, 38" high and 24" deep. Keep 31" to the ceiling, 1/2" at each end and 36" clear in front of each face. It sits on a combustible floor and needs no hearth extension, on a hard metal or wood surface rather than carpet, vinyl or tile. A non-combustible board comes installed above it. Mantel clearance depends on the mantel's depth and material and is charted in Figure 10.4 on page 57 and Figure 10.6 on page 58 of the installation manual. It takes an unswitched 110-120 VAC circuit and connects to your gas line at a 1/2" shut-off valve.
The See Through opens on two faces, with a wall at each end, and frames 43" wide, from $4,989, and it takes two fronts. The Pier 36" opens on three sides as a peninsula and frames 40" wide, from $4,899, and it takes two fronts and an end panel. Both run 38,000 BTU/hr on natural gas. Choose the See Through when the fire needs to reach two rooms through one wall.
It is a direct vent fireplace on DVP pipe, or SLP pipe with an adapter, and it vents off the top or the rear; that choice is made at installation and cannot be changed later. Straight up off the top, it runs from 3 ft to 60 ft to a roof termination. Out through a wall off the top, horizontal reach depends on the rise before the elbow, up to 18 ft on 6 ft of rise, and the whole run stays within 50 ft. Straight out the rear, the run to the wall cap is 16" at most. It is approved for the PVV-SLP, PVI-SLP-B and PVLP-SLP power vents with a wire harness and an IntelliFire control set. Our team builds the vent package for your run; the parts are on pages 66 to 75 of the installation manual and the diagrams on pages 22 to 34.
Because it has glass on both faces, each side takes its own multi side firescreen front, with a built-in barrier that keeps hands off the hot glass. Choosing the black front above adds both. They ship in a separate box, and the fireplace is not run without them.
Yes. Mantel clearance depends on the mantel's depth and material: see Figure 10.4 on page 57 of the installation manual for a combustible mantel and Figure 10.6 on page 58 for a non-combustible one. Mantel legs and wall projections are in Figures 10.7 and 10.8 on page 58, and wall surface temperatures above the opening are charted in Figure 2.1 on page 7. Send us your mantel depth and we'll help.
Indoors, inside a framed wall between two spaces, with 31" to the ceiling, 1/2" at each end and 36" clear in front of each face. It is not designed or approved as an indoor/outdoor fireplace. It sits on a hard metal or wood surface, not directly on carpet, vinyl or tile, and needs no hearth extension. It is certified for bedrooms and bedsitting rooms, and may be installed as an OEM installation in a manufactured or mobile home. Adhesive vinyl flooring is not recommended. Rated input is for 0 to 2,000 ft and is reduced 4% per 1,000 ft above that in the USA.
Your gas line connects at the 1/2" shut-off valve with its flexible connector, and the fireplace needs an unswitched 110-120 VAC circuit to the junction box. Inlet pressure is 5" to 10" w.c. on natural gas and 11" to 13" w.c. on propane. It is built for natural gas, and choosing Propane above adds the conversion kit, which a qualified service technician installs.
No. The Torch Guys is an authorized Majestic dealer, and the warranty covers fireplaces bought from one. On a gas fireplace the firebox and heat exchanger carry 20 years on parts and 3 on labor, burners, logs and metal or fiber refractory 10 years on parts and 1 on labor, vented burners and logs 5 years, electrical components and glass liner panels 2 years, and all other parts 1 year. We will help you with any claim.
